SRFS Teleinfra

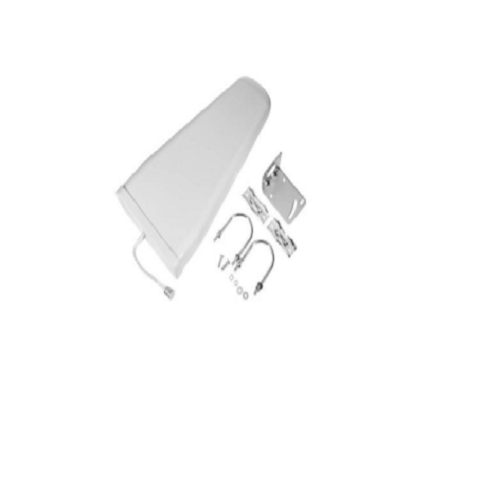

LPDA Antenna 12 dBi 698-4000 MHz

LPDA Antenna 12 dBi 698-4000 MHz

ELECTRICAL SPECIFICATIONS

Frequency Range 698~4000 MHz
Gain (Avg)
12 dBi
VSWR (max) ≤1.5
Polarization Vertical
Front to Back Ratio ≥15 dB
Horizontal Beam Width 70°
Vertical Beam Width 50°
Lightning Protection DC Ground
Maximum Input Power 50W
Input Impedance 50Ω



 Mechanical Specifications


Connector N-Female
Dimensions 650×280×130 mm
Packing Size 450×230×75 mm
Weight 1.1 kg
Reflector Material Aluminum
Radome Material ABS
Rated Wind Velocity 210 km/h
Operating Temperature -40°C to +65 °C
Mounting Pole Ø38-Ø52 mm
