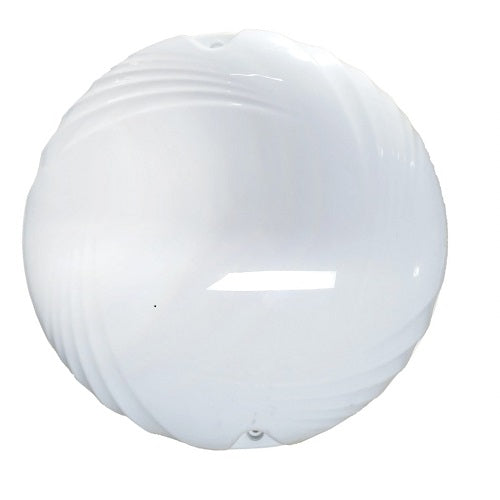

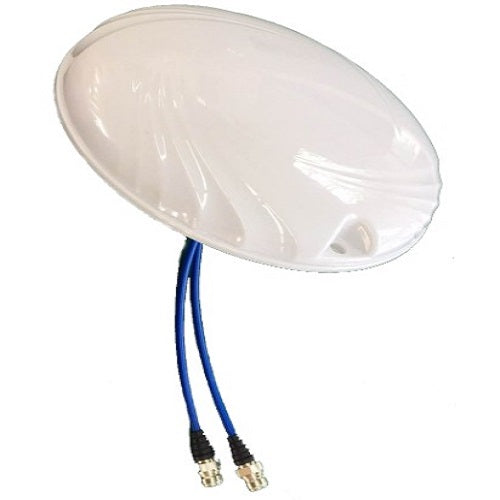

MIMO Omni Antenna 698-4000 MHz

Product Feature

• Compact, Low Weight
• Wide Frequency Band
• High Reliability
• Long Warranty Time
• Simple Installation

Electrical & Mechanical Specification

Frequency

698-806/806-960/1710-2700/3300-4000MHz

Gain	3.0±0.5/3.5±0.5/4.5±1.0/5.0±1.0dBi

VSWR	<1.8/<1.5<1.5/<1.8

Polarization

Linear*2

V3rd PIM

<-150dBc@2*33dBm

Power Handling

50W

Impedance

50 Ohm

BW/Vertical

90°/85°/45°/35°

BW/Horizontal

360°

Lighting Protection

DC-Ground

Connector Type

2*N-Female

Net Weight

0.50kg

Dimensions

Ø220*36mm

Radome Material

ABS

Radome Color

White RAL9003



Environmental Specification



Operating Temperature Range

-35°C to +65°C

Storage Temperature Range

-60°C to +85°C

Antenna Color

White

Cable Color

White

Relative Humidity

5%-95%
