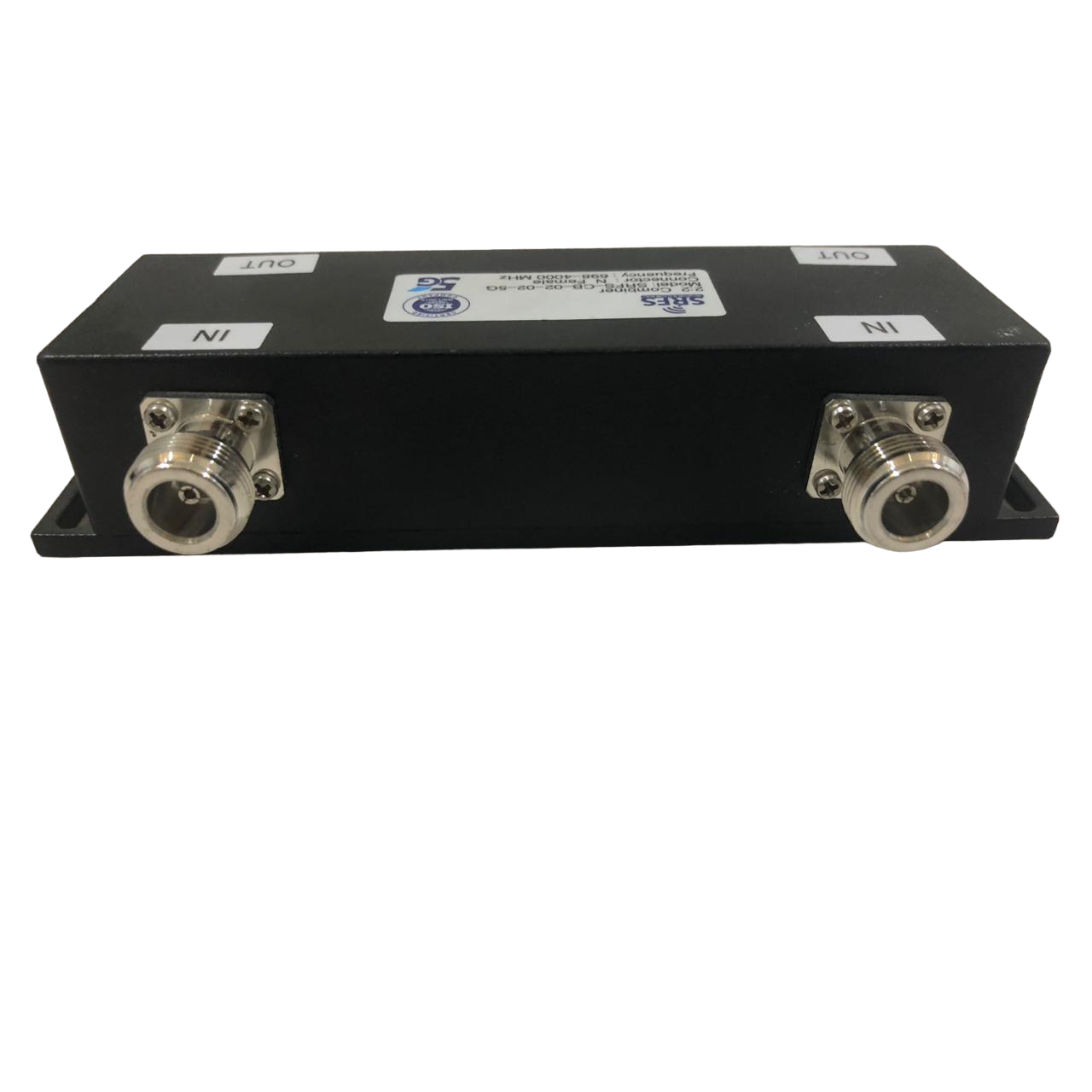

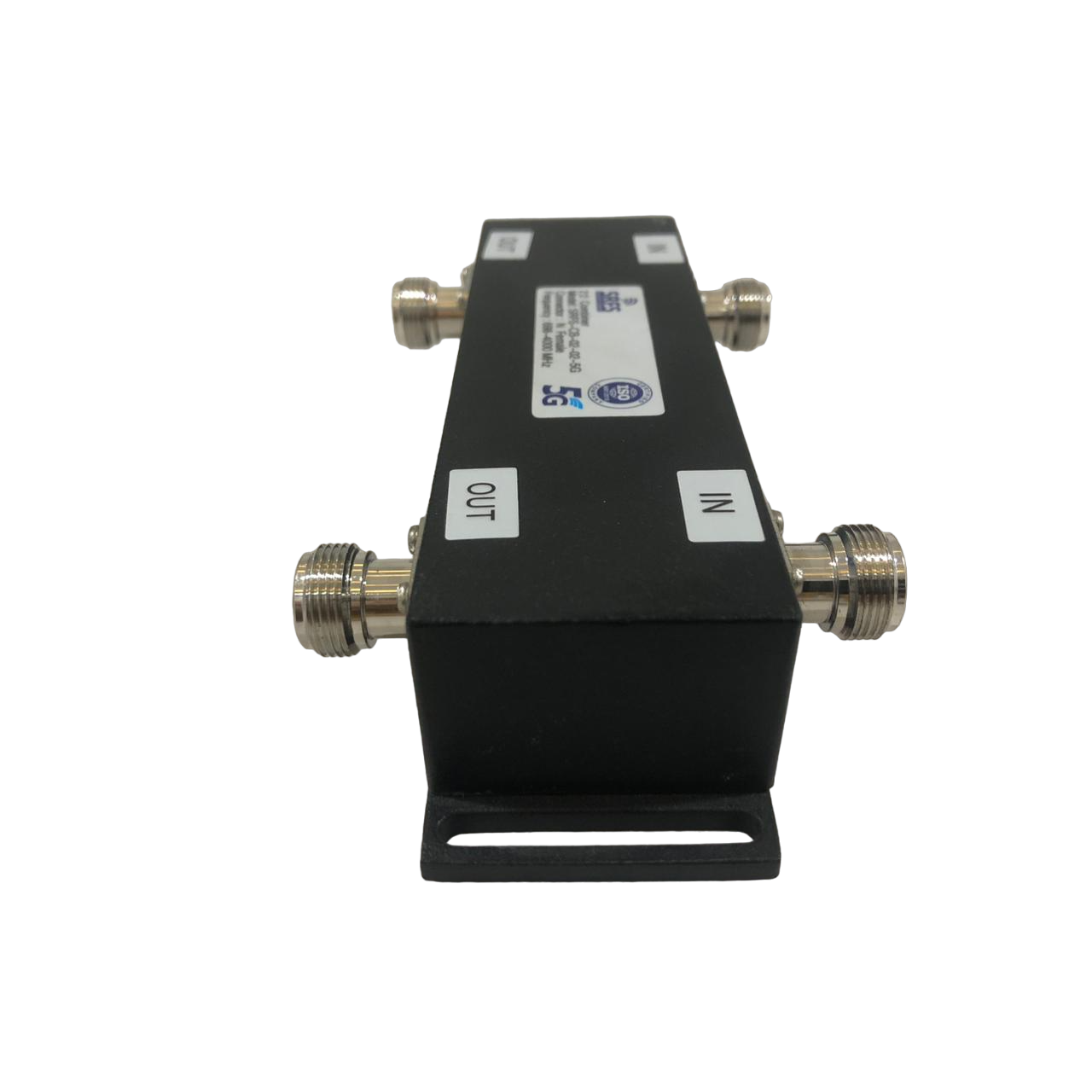

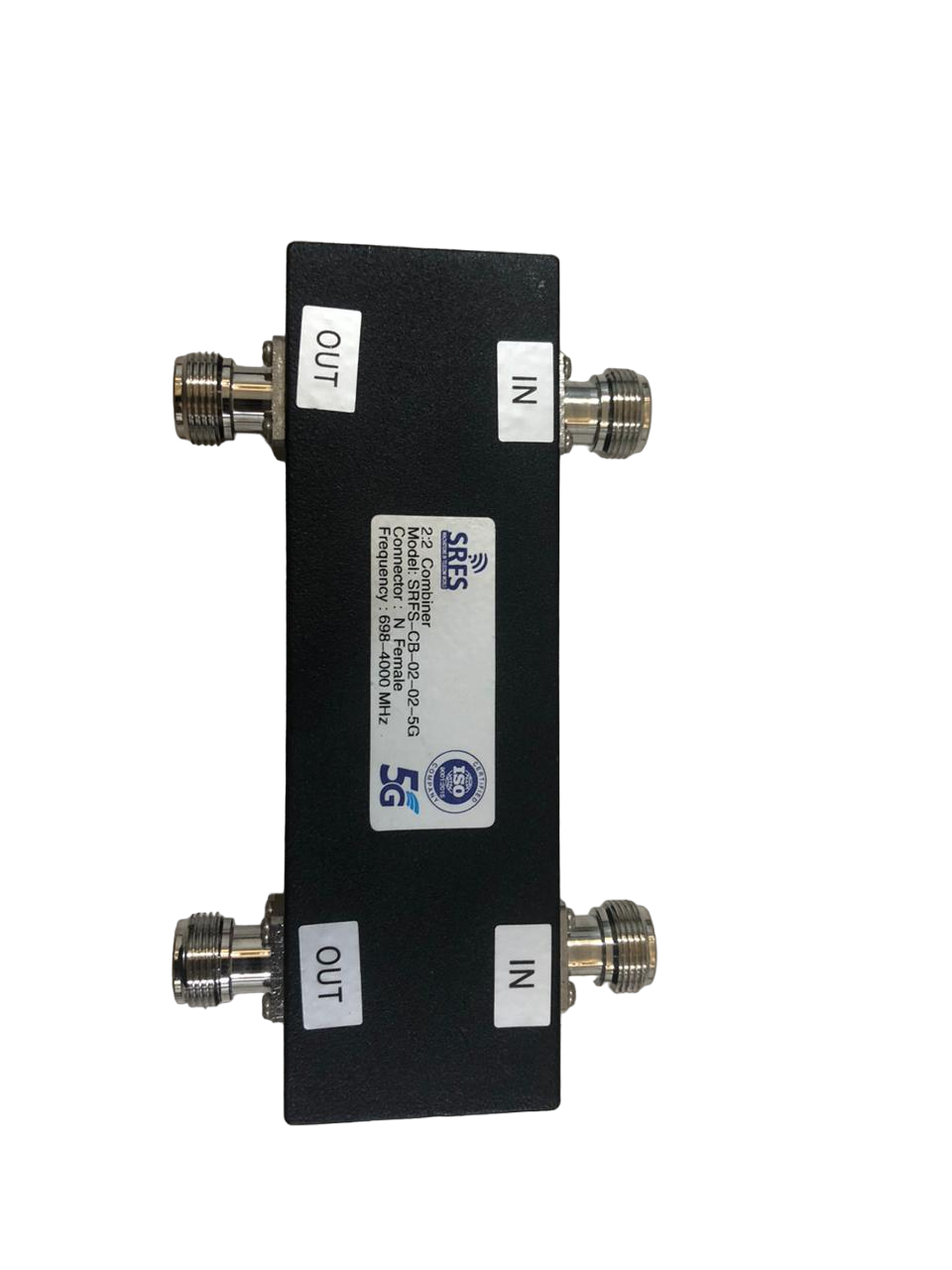

N-F 2 In 2 Out Hybrid Combiner 698-4000MHz
N-F 2 In 2 Out Hybrid Combiner 698-4000MHz
Electrical and Mechanical Specifications
Frequency range | 698MHz -4000MHz |
Insert loss | ≤3.6dB |
VSWR | ≤1.25 |
Isolation | ≥25dB |
PIM3 | ≤-165dBc@2×43dBm |
Power | 300W |
Impedance | 50Ω |
Connector | N-F |
Degree of protection | IP65 |
Appearance | Black paint |
Relative humidity | ≤95% |
Operating Temperature (°C) | -20° C to +55° C |
