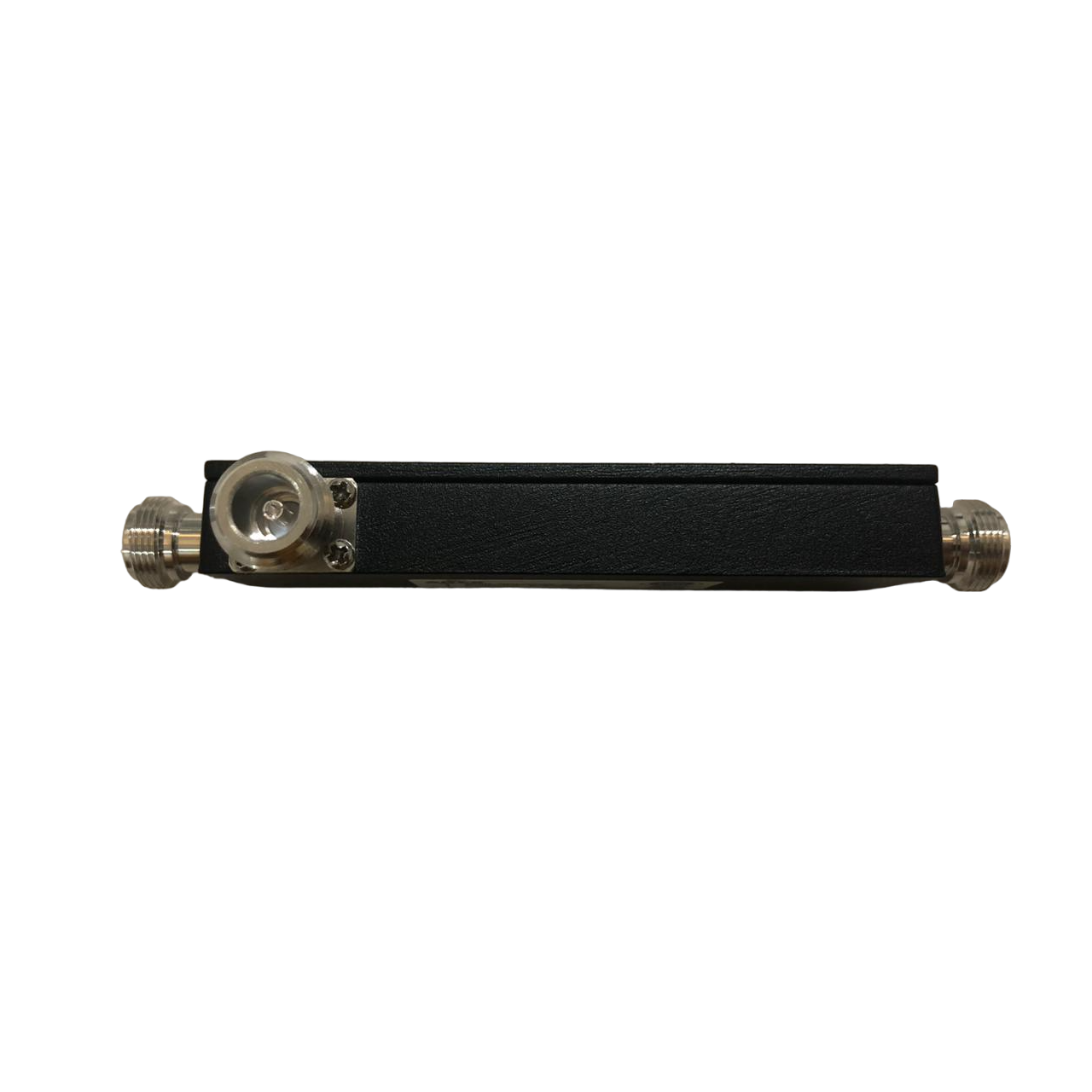

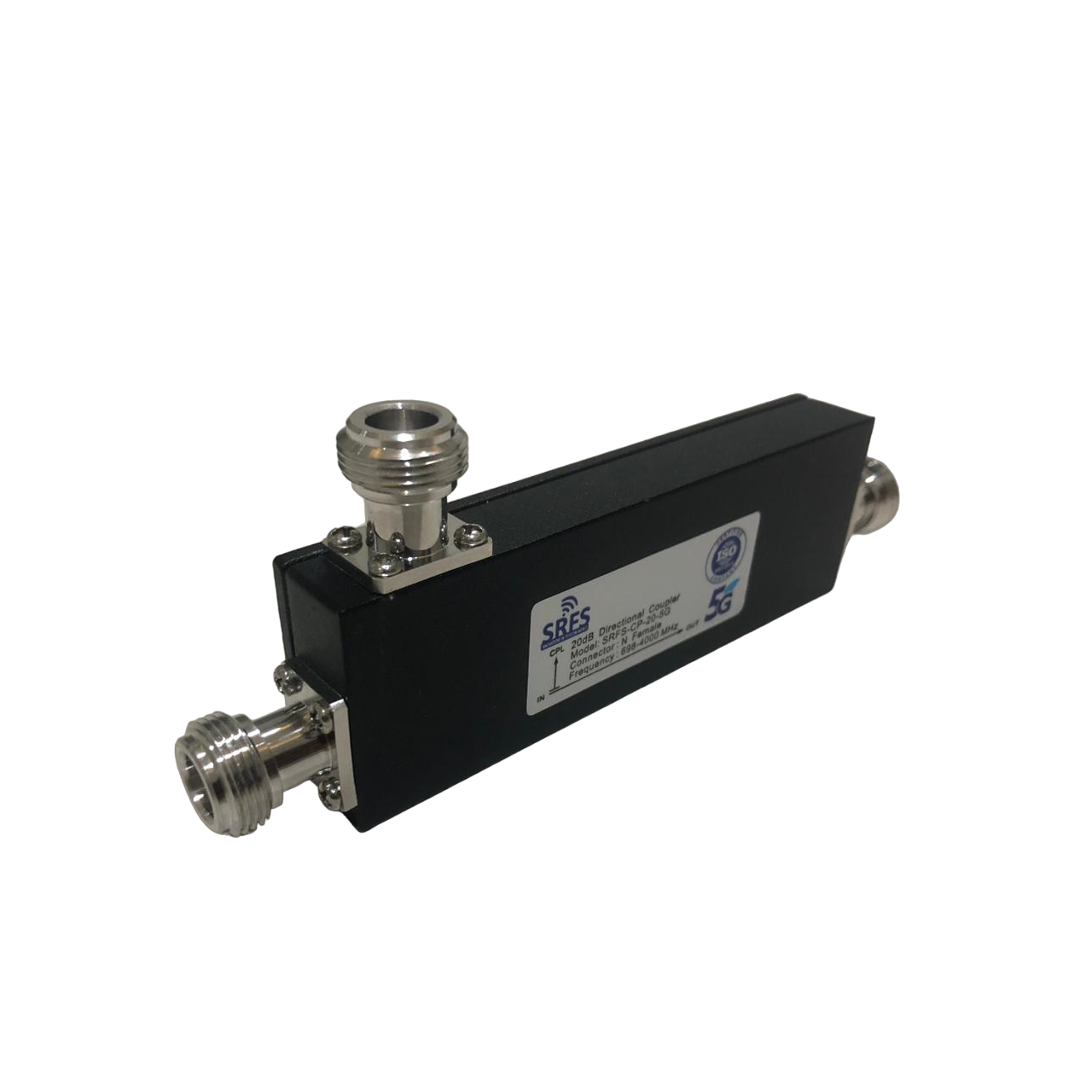

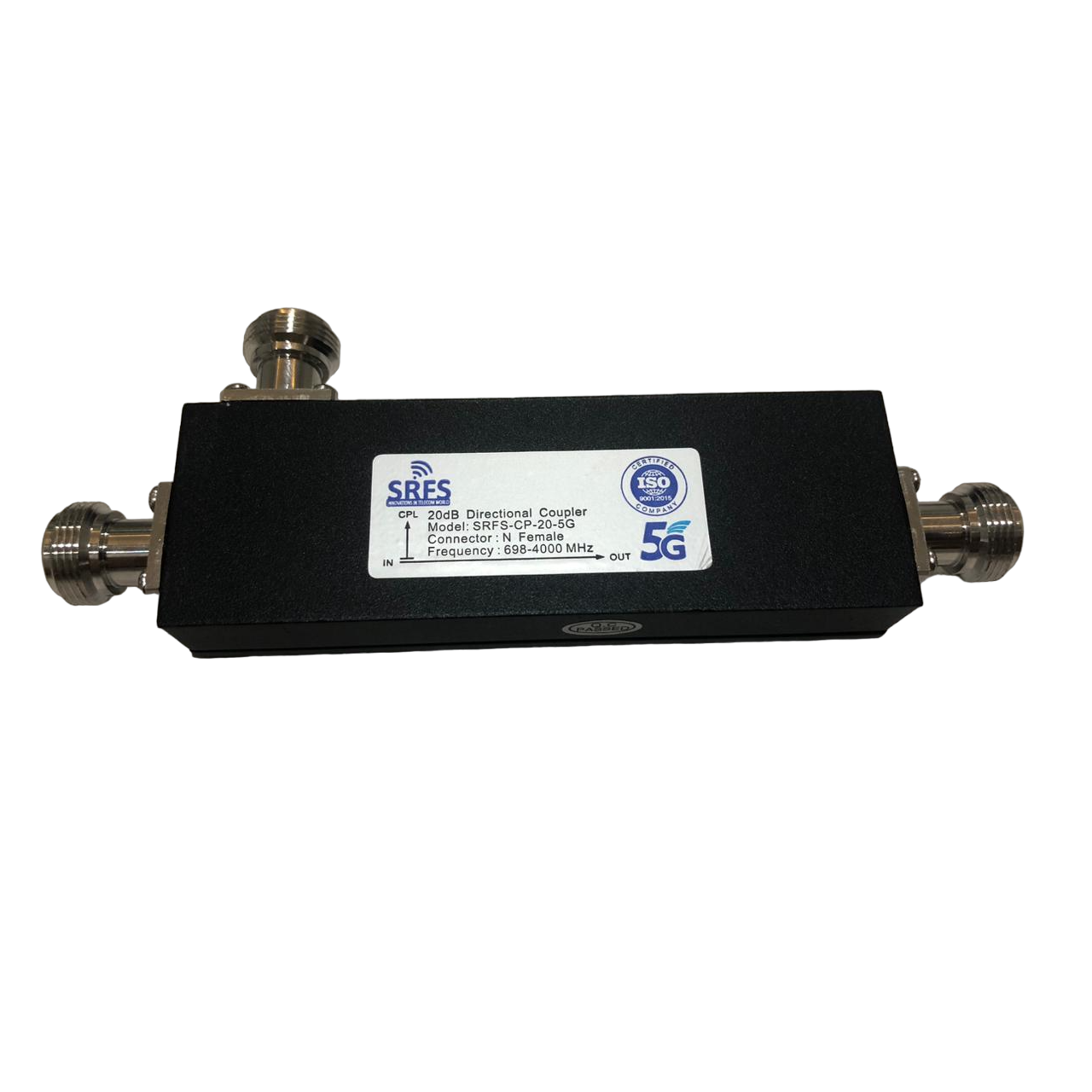

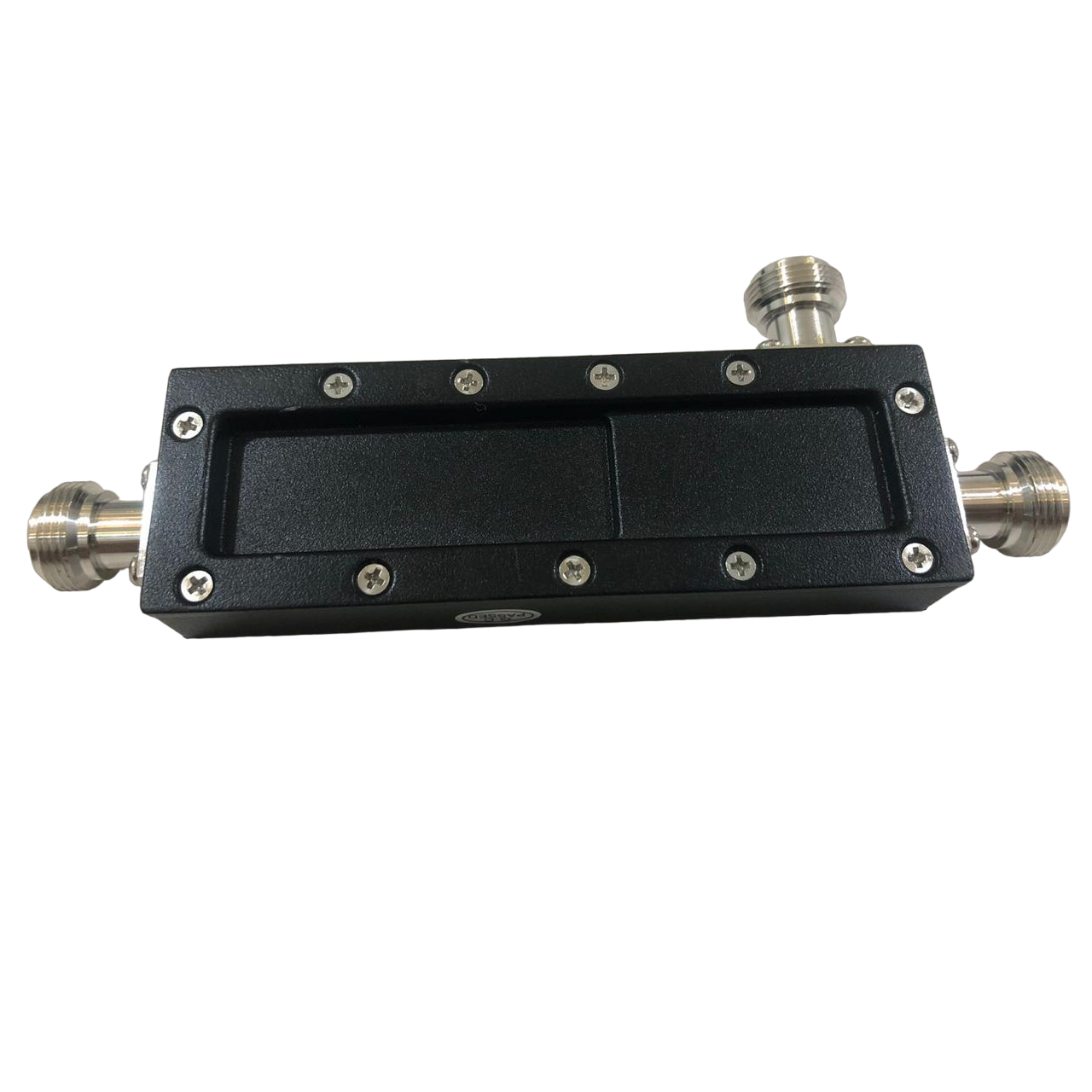

N Female 20dB Directional Coupler 698-4000 MHz

Operating Frequency

698-4000 MHz

Impedance

50 Ohm

VSWR

1.25

Coupling

20 dB

Tolerance

1.2 dB

Insertion Loss

0.22 dB

Isolation

>38 dB

IM3 (dBc @ 2×43dBm)

-150 dBc

Application

Indoor/Outdoor

Operating Temperature

-40 to 80 ℃

Interface

N Female /Din Female /4.3-10 Female

Handling Power

300 W3

Peak Power

1200 W

Dimension (mm) (L×W×H, excl connector)

110*36*18 mm

Net Weight

155+20 Gms

ROHS Compliance

Yes
