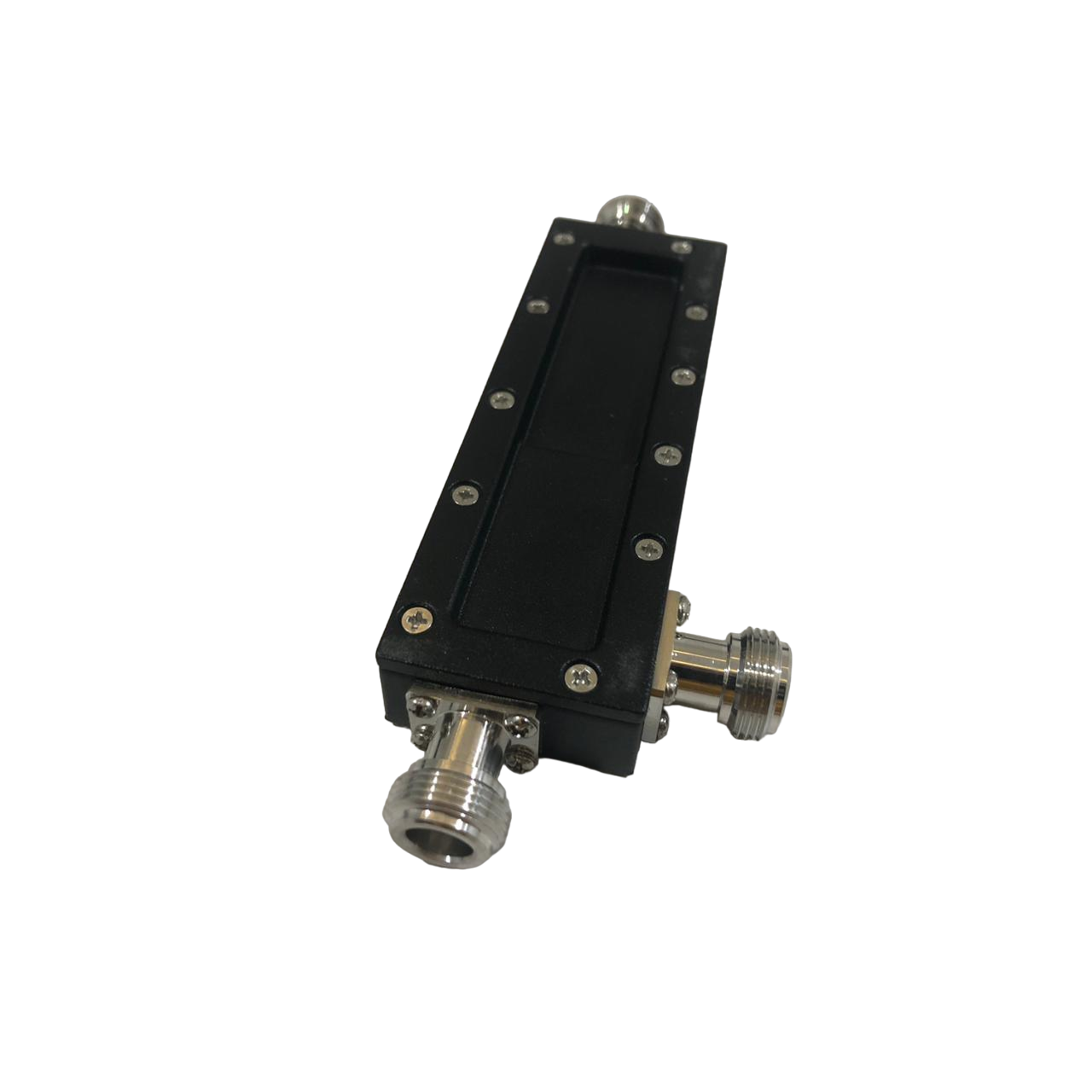

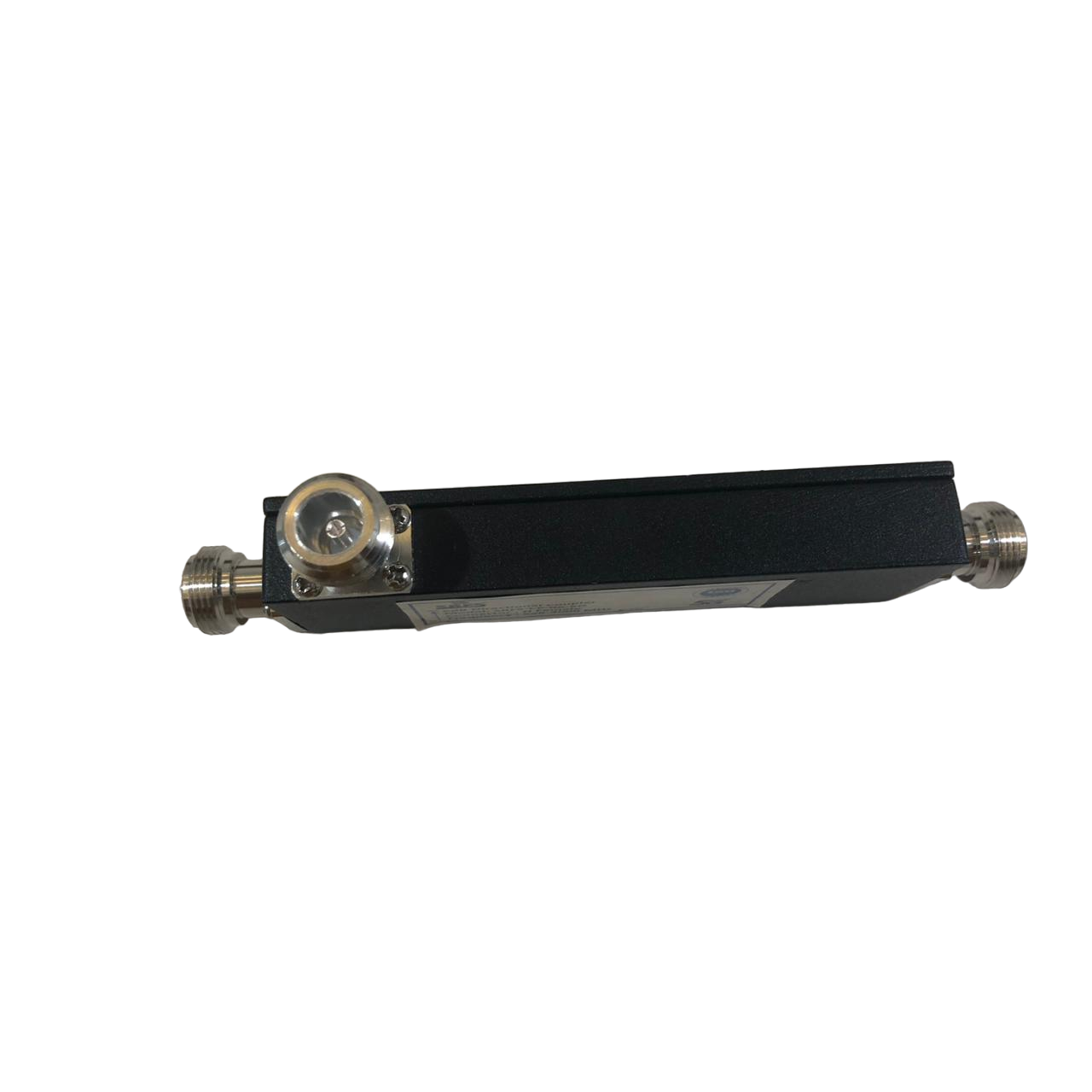

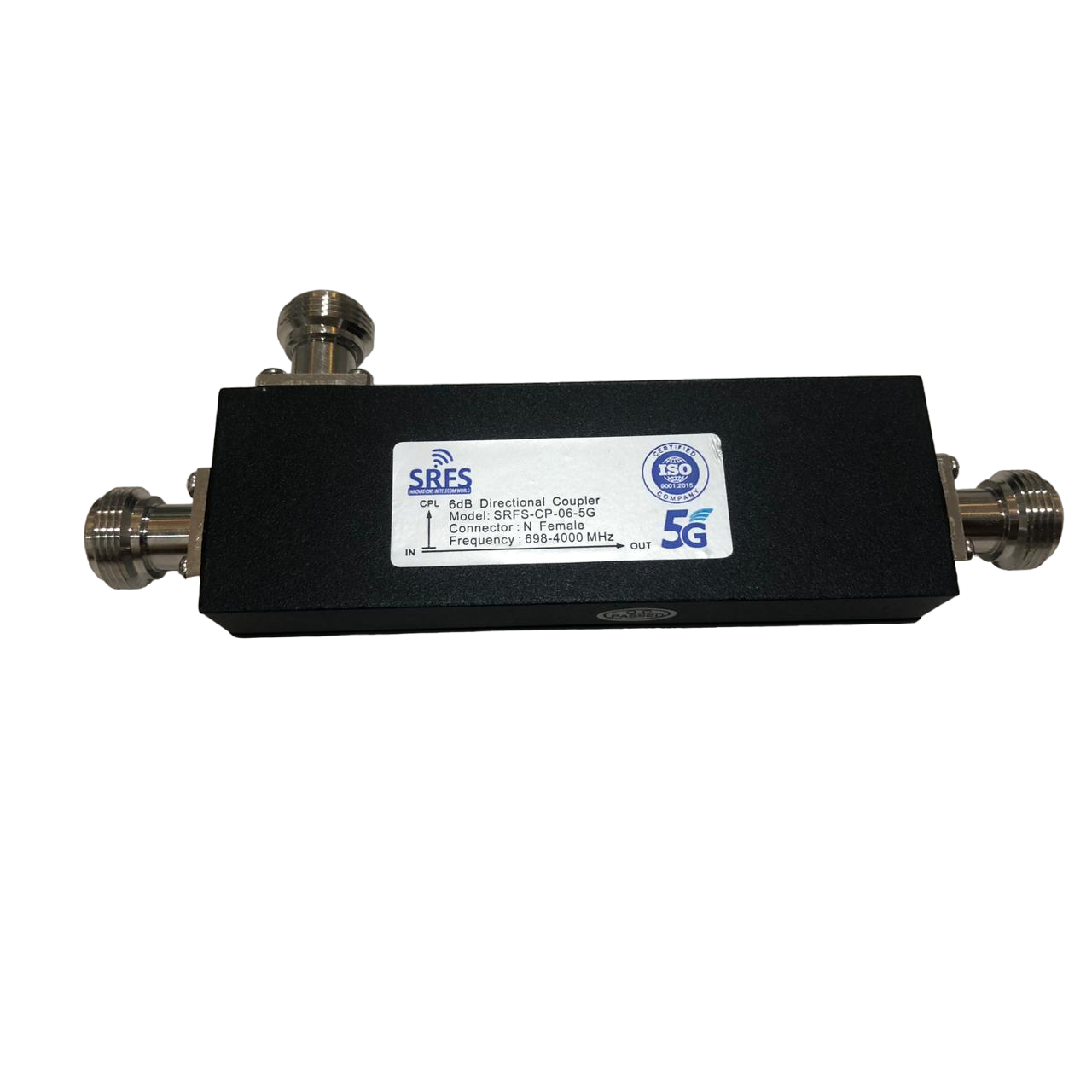

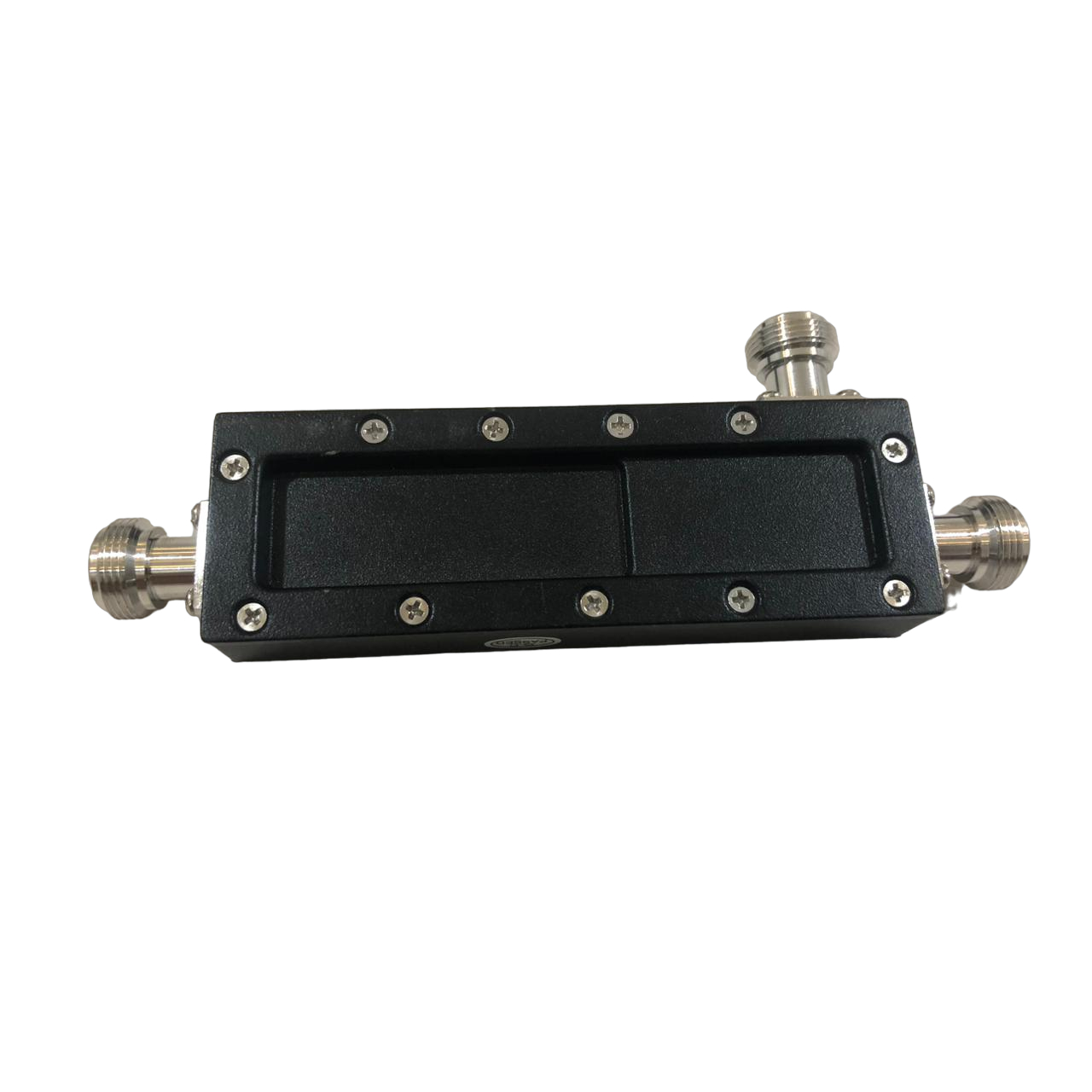

N-Female 6dB Directional Coupler 698-4000 MHz
N-Female 6dB Directional Coupler 698-4000 MHz
Electrical & Mechanical Specifications
Operating Frequency |
698-4000 MHz |
Impedance |
50 Ohm |
VSWR |
1.25 |
Coupling |
6 dB |
Tolerance |
0.9 dB |
Insertion Loss |
1.40 dB |
Isolation |
>25 dB |
IM3 (dBc @ 2×43dBm) |
-150 dBc |
Application |
Indoor/Outdoor |
Operating Temperature |
-40 to 80 ℃ |
Interface |
N Female /Din Female /4.3-10 Female |
Handling Power |
300 W3 |
Peak Power |
1200 W |
Dimension (mm) (L×W×H, excl connector) |
110*36*18 mm |
Net Weight |
155+20 Gms |
ROHS Compliance |
Yes |
