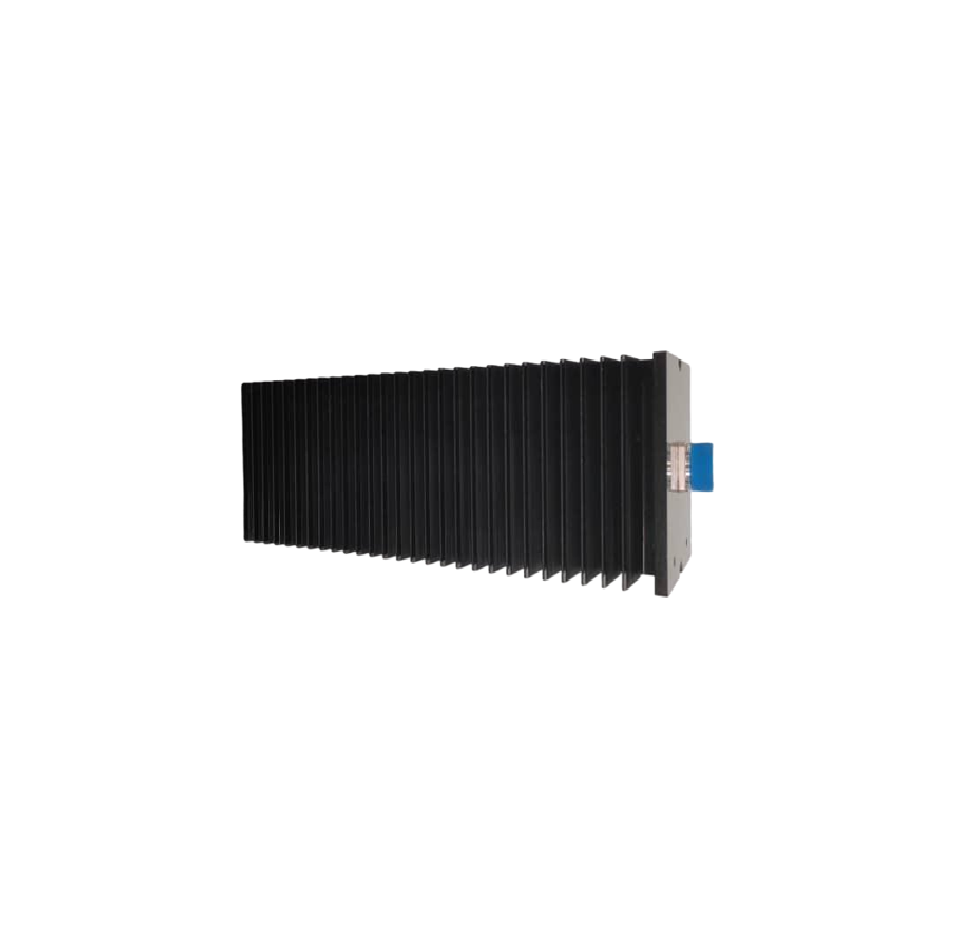

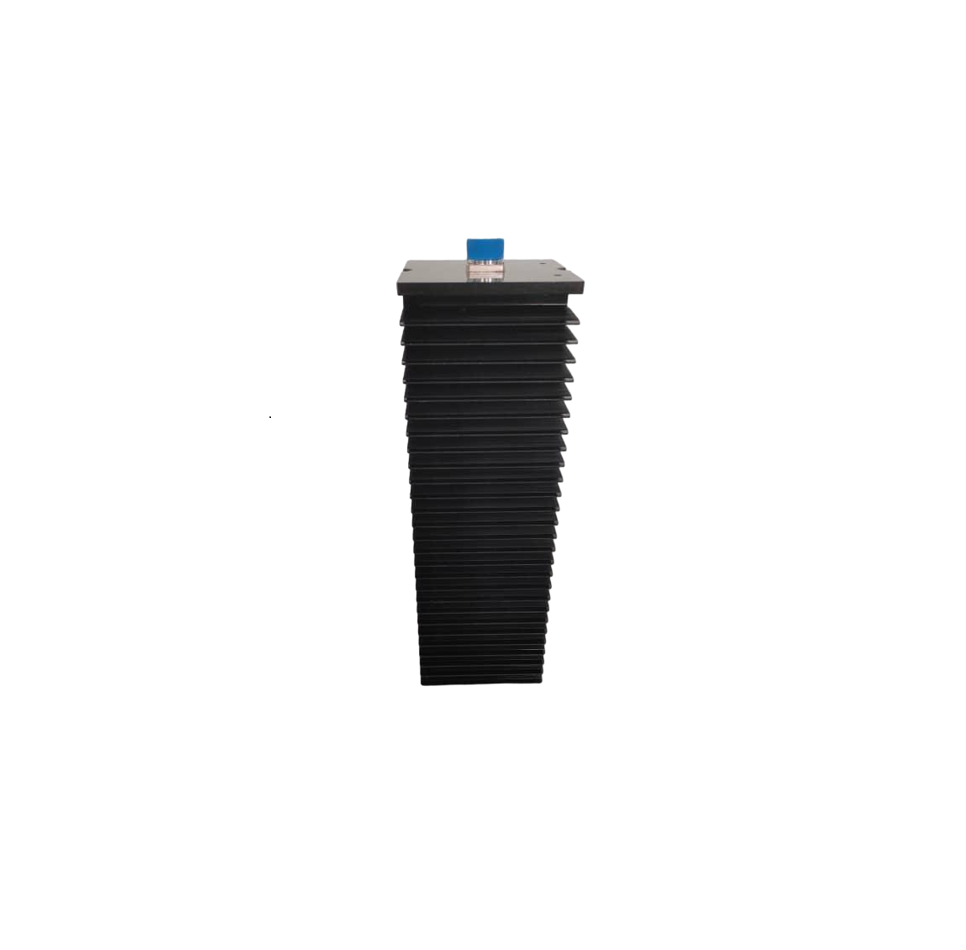

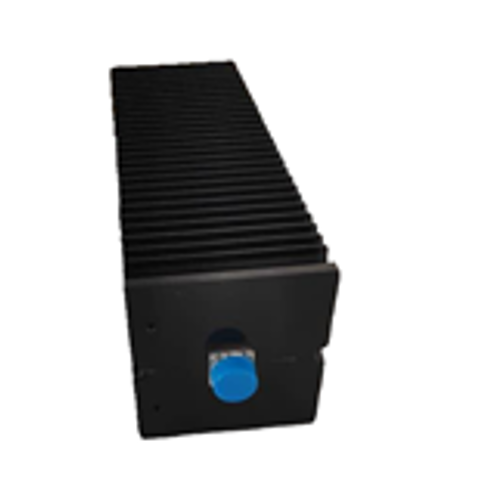

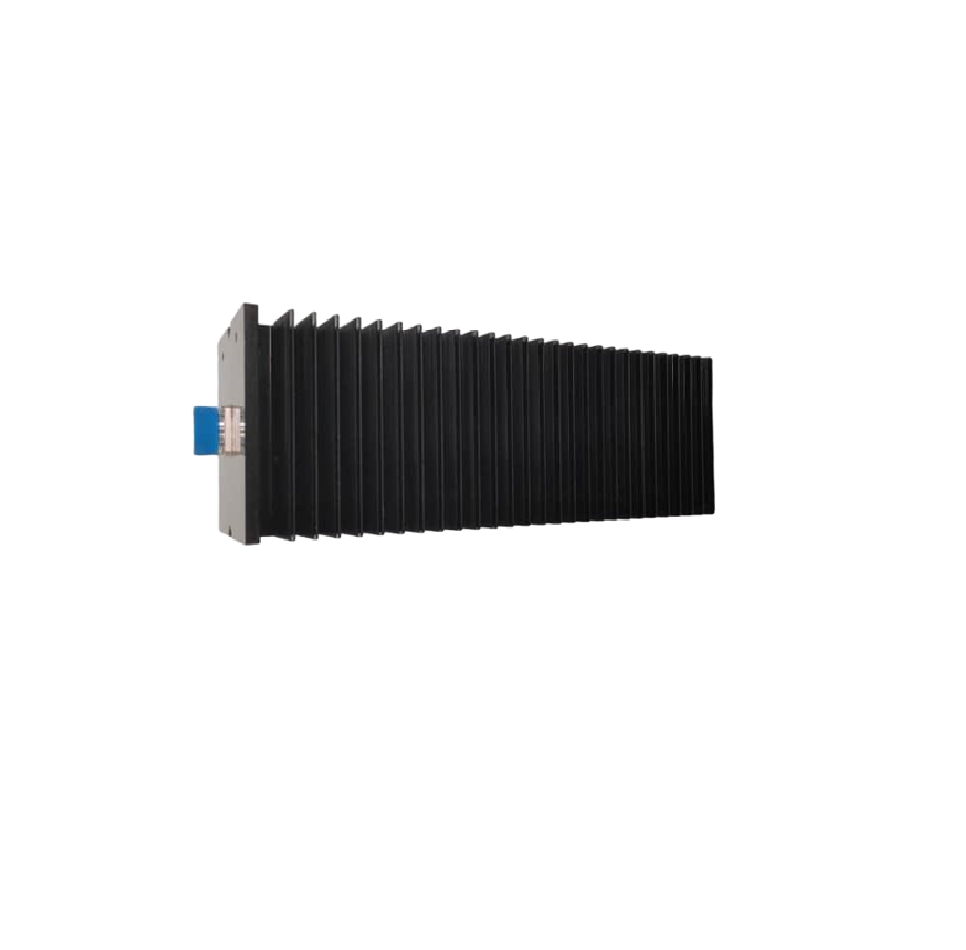

N Female Coaxial RF Termination(DC-6000)

N Female Coaxial RF Termination(DC-6000)

Electrical & Mechanical Specifications



Impedance

50 ohm

Frequency Range

DC-6 GHz

VSWR(Return Loss)

1.25 max

Avg Power Handling

1000W@ 25 ambient, derating linearly to 100W at 100

Insertion Loss

≤0.05

Center Contact Resistance

≤ 1 m

Outer Contact Resistance

≤ 0.25 m

Peak Power

10kW

Connector Body

Brass plated nickel

Center Contact

Gold plated bronze

Heat Sink

Black anodized aluminum

Insulator

PTFE

Cycle

500

Operating Temp

-55 to 100

Storage Temp

-55 to 125

RoHS

Compliant
