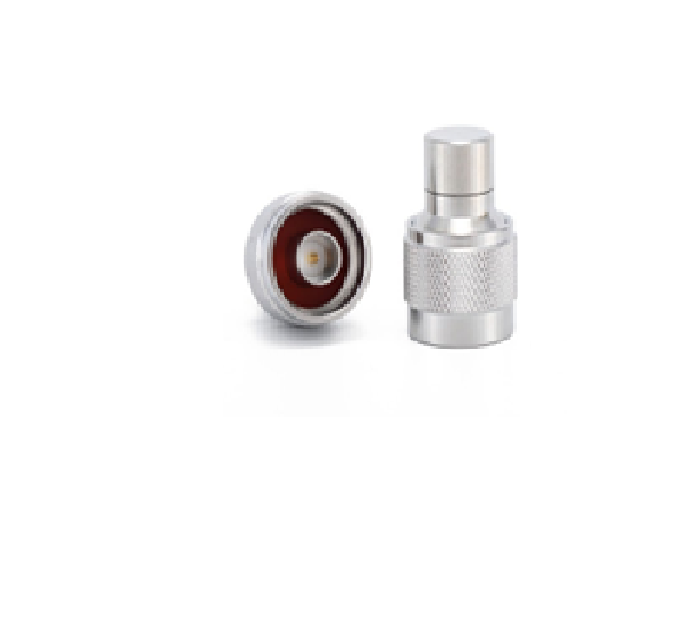

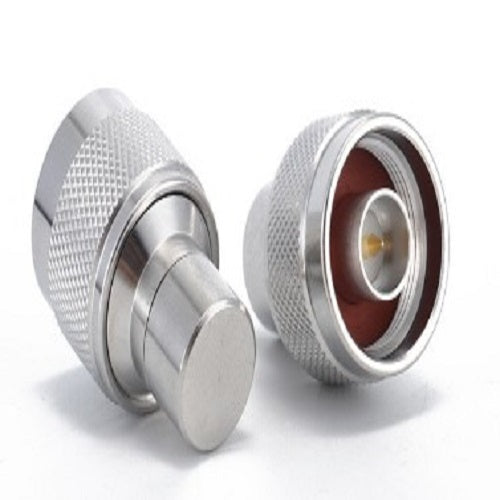

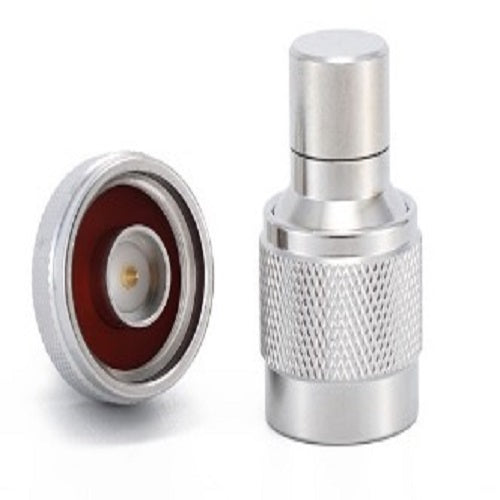

N Male 2W Termination 50 Ohm (SRFS-2-06-N M)

Product Feature:

• Reliable VSWR
• Easy Maintenance
• Wide Broadband Frequency Application



Electrical and Mechanical Specifications

Frequency Range

DC- 6 GHz

VSWR

≤1.21

Impedance

50 Ω

Average Power

2 Watt

Peak Power

5µs:1KW

3rd Order IMD

≤-105dBc @2x43dBm

Connector

N Male

MATERIALS

Material

Plating

Connector Body

Brass

Ternary Plating

Insulator

PTFE

-

Center Contact

Brass

Au

Hex Nut

Brass

Ternary Plating

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

65℃～+85 ℃

Relative Humidity

5%-95%

RoHS Compliant

Yes
