SRFS Teleinfra

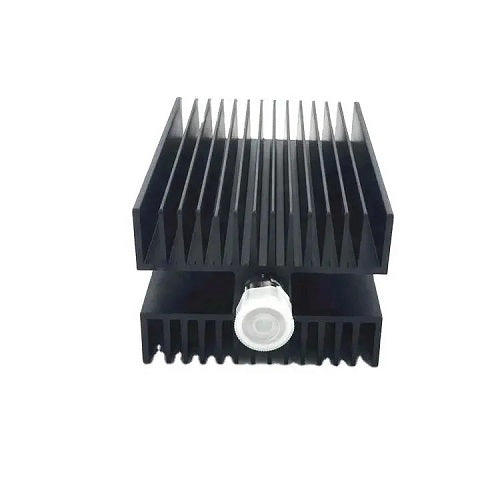

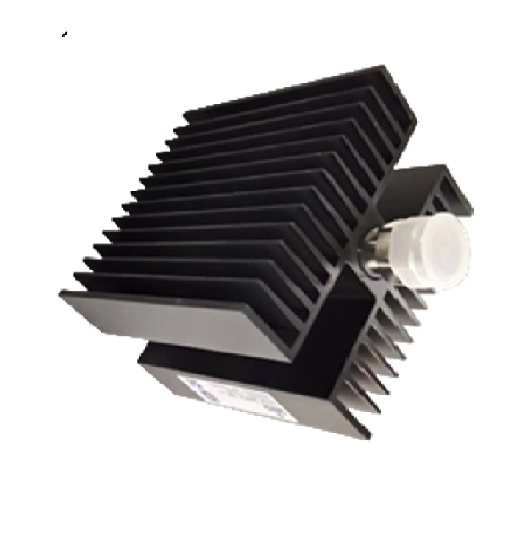

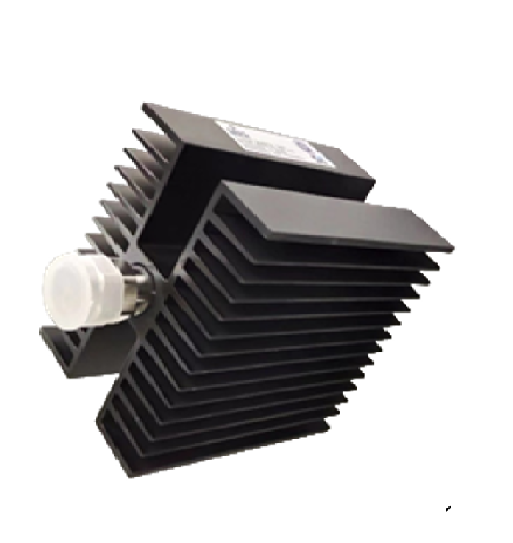

N Male Dummy Load 100W, DC-6000 MHz
N Male Dummy Load 100W, DC-6000 MHz
Couldn't load pickup availability
Electrical and Mechanical Specifications
| Operating Frequency | DC-6000 MHz |
| Impedance | 50 Ohm |
| VSWR |
1.25 |
| Power | 100 W |
| IM3 (dBc @ 2×43dBm) | -150 dBc |
| Application | Indoor/Outdoor |
| Operating Temperature | -40 to 80 ℃ |
| Interface | N Male /Din Male /4.3-10 Male |
| Dimension (mm) (L×W×H, excl connector) |
120*100*74 mm |
| Material | Copper/Aluminum |
| Protection Degree | IP67 |
| Net Weight | 450 Gms |
| ROHS Compliance | Yes |
