SRFS Teleinfra

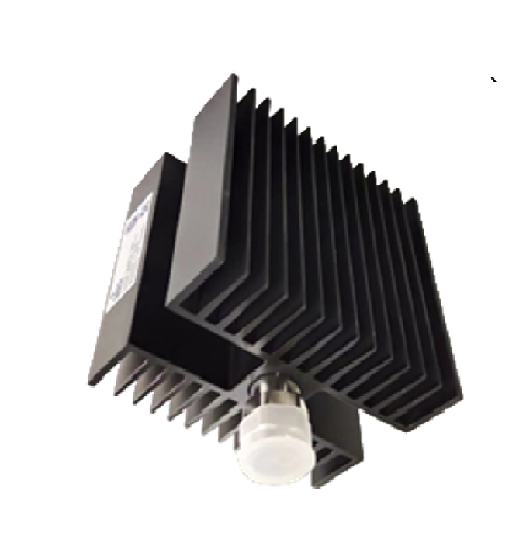

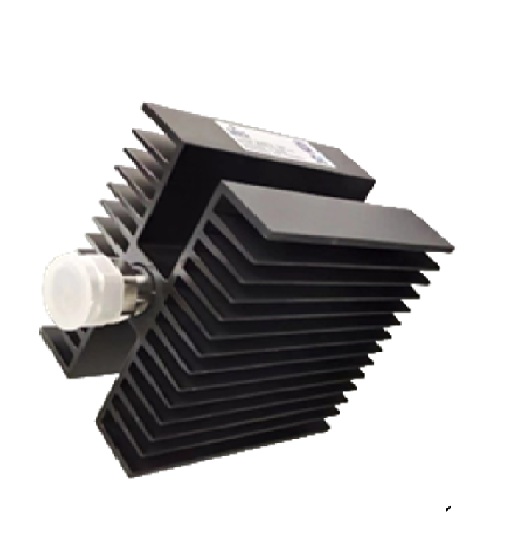

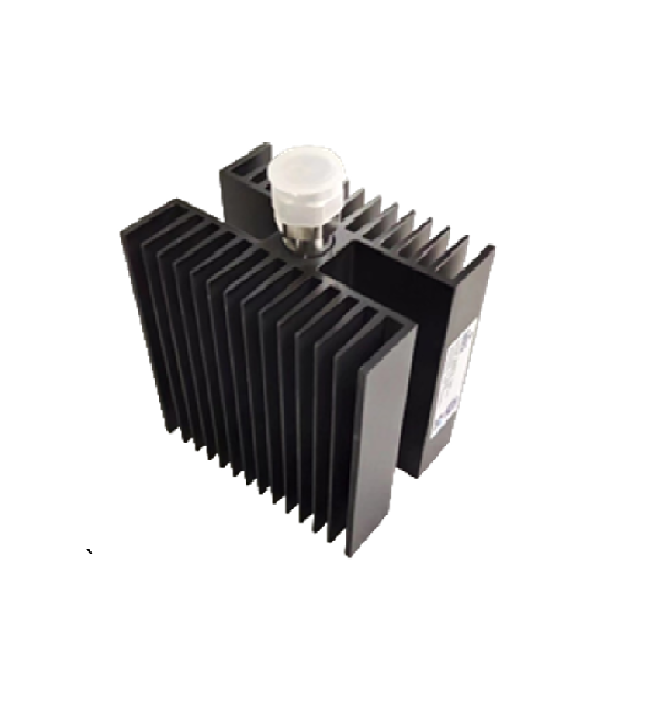

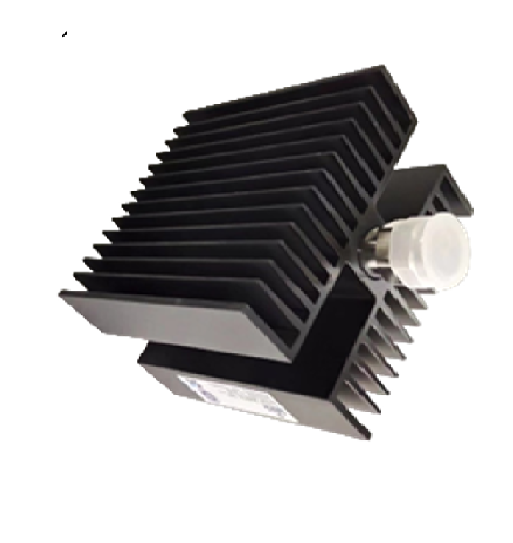

N Male Dummy Load 40W(DC-6000)

N Male Dummy Load 40W(DC-6000)

Electrical & Mechanical Specifications:



Operating Frequency

DC-6000 MHz

Impedance

50 Ohm

VSWR

1.25

Power

40 W

IM3 (dBc @ 2×43dBm)

-120 dBc

Application

Indoor/Outdoor

Operating Temperature

-40 to 80

Interface

N Male /Din Male /4.3-10 Male

Dimension (mm) (L×W×H, excl connector)

120*100*74 mm

Material

Copper/Aluminum

Protection Degree

IP67

Net Weight

450 Gms

ROHS Compliance

Yes
