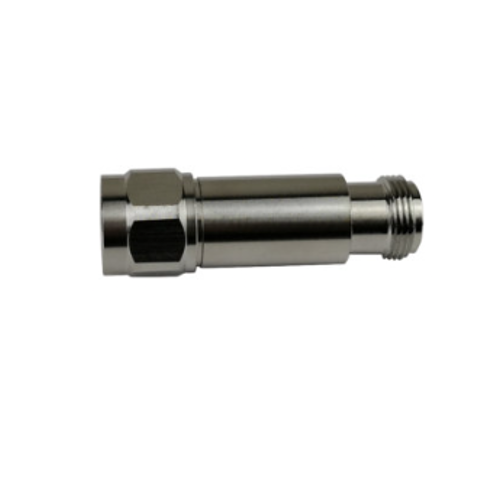

N-Type DC BLOCKS 10MHz~6GHz
N-Type DC BLOCKS 10MHz~6GHz
Couldn't load pickup availability
For more detail : Click Here
|
Electrical and Mechanical Specifications |
|
|
Frequency Range |
10MHz~6GHz |
|
Model |
SRFS-BL02-02 |
|
Connector |
N-MF |
|
VSWR |
1.2:1 |
|
Power |
2W |
|
Impedance |
50Ω |
|
Working Voltage |
3000V |
|
Dimension |
58*18mm |
|
Tolerance |
+2% |
|
Temperature Range |
-55℃～+125℃ |
|
Weight |
70g |
