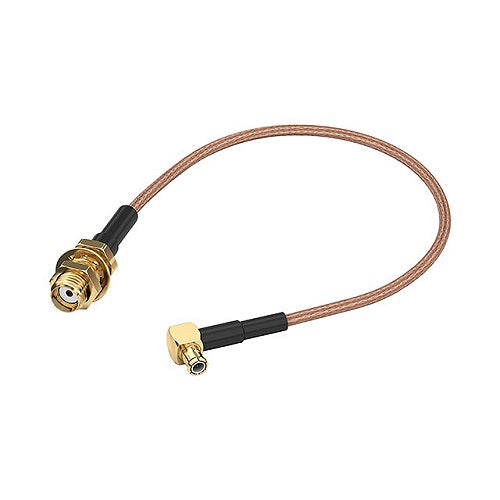

N(F) to MCX(M) RA with Rg 316 15 cm
N(F) to MCX(M) RA with Rg 316 15 cm
Electrical Specifications
Frequency Range | DC 3GHz |
VSWR | 1.35:1 |
Velocity of Propagation | 70% |
Capacitance | 32[104.99] pF/ft[pF/m] |
Mechanical Specifications
Diameter | 0.339 in[8.61 mm] |
Cable Type | RG-316 |
Length | 15 cm or Customized |
Impedance | 50 Ohms |
Inner Conductor Type | Solid |
Inner Conductor Material and Plating | Copper Silver |
Dielectric Type | PTFE |
Number of Shields | 1 |
Shield Layer1 Silver Plated | Copper Braid |
Jacket Material | FEP, Tan |
Jacket Diameter | 0.098 in[2.49 mm] |
Operating Temperature | -65 to +165 degree Celsius |
Description | Connector1 | Connector2 |
Type N | Female | MCX Male |
Configuration | Straight | Right Angle |
Polarity | Standard | Standard |
Impedance | 50 Ohms | 50 Ohms |
Contact Material & Plating | Brass, Gold | Brass, Gold |
Body Material & Plating | Brass, Nickel | Brass,Gold |
Contact Plating Spec. | 50 μ in. minimum | 30 μ in. minimum |
Dielectric Type | PTFE | PTFE |
Hex Size | 5/16 inch |
Torque | 4 in-lbs[0.45 Nm] | Standard |
Body Plating Specification | 100 μ in. minimum | 100 μ in. minimum |
