SRFS Teleinfra

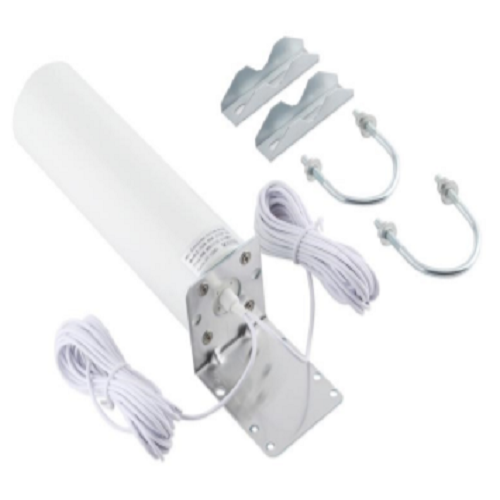

Outdoor Omni Antenna 12 dBi 698-4000 MHz

Outdoor Omni Antenna 12 dBi 698-4000 MHz

ELECTRICAL SPECIFICATION

Frequency Range 698-4000MHz
Gain (Avg) 9 dBi/12dBi
VSWR ≤1.8
Horizontal-3dB Beamwidth (°) 360
Vertical-3dB Beamwidth (°) 85/45
Polarization Vertical
Max Input Protection(W)
50
Input Impedance(Ω)  50



MECHANICAL SPECIFICATIONS

Antenna Dimension(mm) Ф60X230
Weight(kg) 0.75
Cover Material Fiberglass
Connector N-Female or Requested
Operating Temperature (°) -40~+60
