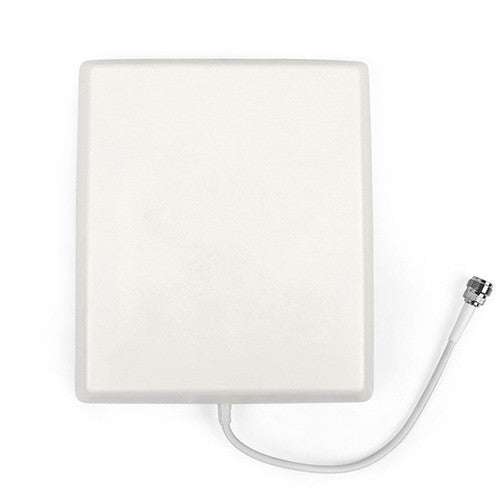

Patch Panel Antenna 9 dBi 698-4000 MHz
Patch Panel Antenna 9 dBi 698-4000 MHz
Electrical Specifications
Frequency Range | 698-4000 MHz |
Gain |
9 dBi |
V.S.W.R | ≤1.5 |
Polarization | Vertical |
Front to Back Ratio | ≥15 dB |
Horizontal Beamwidth | 65 |
Vertical Beamwidth | 55° |
Input Impedance | 50 Ω |
Max. Power | 50W |
Lightning Protection | DC Ground |
Mechanical Specifications
Connector | N-Female |
Dimensions | 210×180×43 mm |
Packing Size | 240×200×70 mm |
Weight | 0.5 kg |
Reflector Material | Aluminum |
Radome Material | ABS |
Operating Temperature (®C) | -40°C to +65 °C |
