SRFS Teleinfra

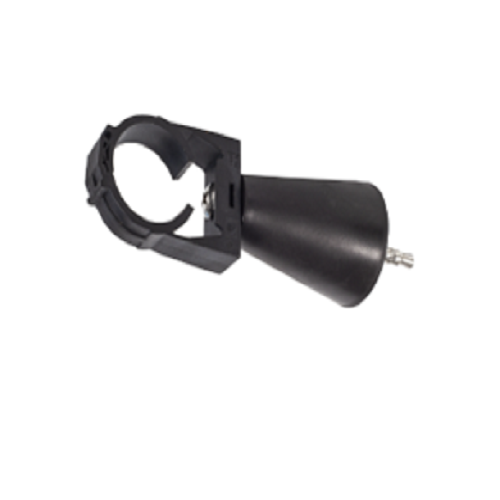

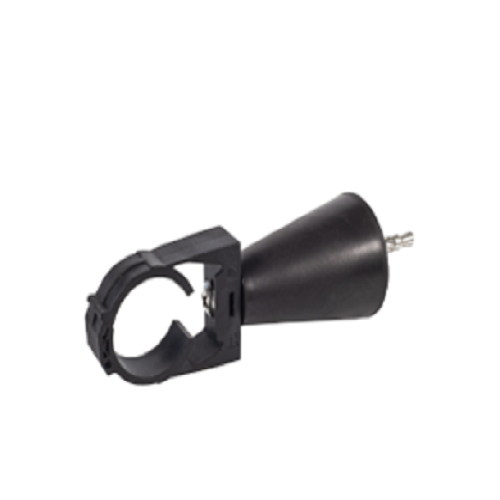

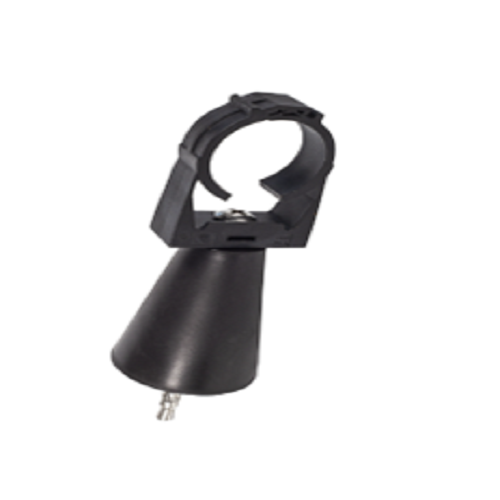

PP Clamp for 1-5/8" Leaky Cable with M6 Wedge

PP Clamp for 1-5/8" Leaky Cable with M6 Wedge

Description


Self-Locking Click Clamp for 7/8" Leaky Co-axial cable. Self-Locking Click Clamp for 7/8”
Leaky Cable. These hanger kits and accessories are designed for mounting vertical and
horizontal runs of coaxial cables.


Features:


Allows for safe and efficient installation of Leaky Co-Axial RF Cable using these self-locking
Click Clamps. Simple mounting by using anchoring arrangement provided and mounted
onto a standoff to ensure minimum adequate distance from wall. Simply push the cable
in by hand, clamp will grip and lock by applying slight pressure.





ELECTRICAL & MECHANICAL SPECIFICATIONS

Product Line RF Cable Accessories
Model No.  SRFSL-RFCL-PP-22D
Product Type Installation Hardware
Clamp Type Stainless steel clamp for Leaky Cable
Cable Size 1-5/8”
Color Silver and Black
Material SS, PP FRLSZH, Nylon FR
Axial Load Capability 8 X 1-1/4” LCX Cable Weight per mtr
Corrosion Resistance 500 hours of the salt spray chamber
UV Resistance 100 hours of accelerated UV Life Chamber
Operating Temperature -40 °C to +85°C


TECHNICAL SPECIFICATIONS

Self-Locking Clamp-1 pcs Nylon FR
Bolt M6 1 pcs Stainless Steel SS304 or SS316
Flush Anchor 1 pcs Stainless Steel SS304 or SS316
Round Base - 1 pcs PP -FRLSZH
