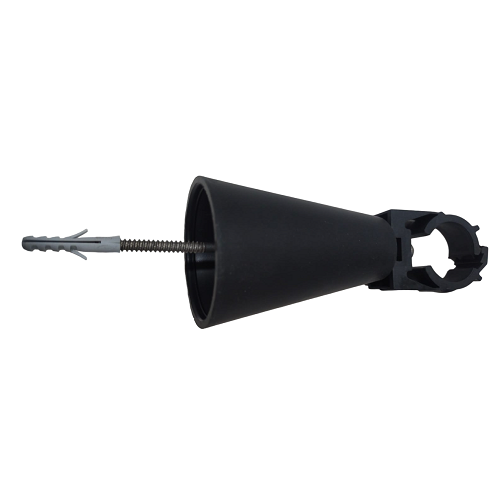

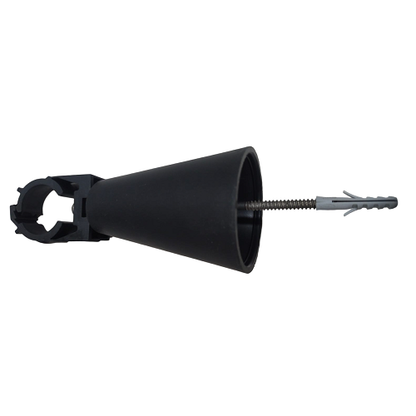

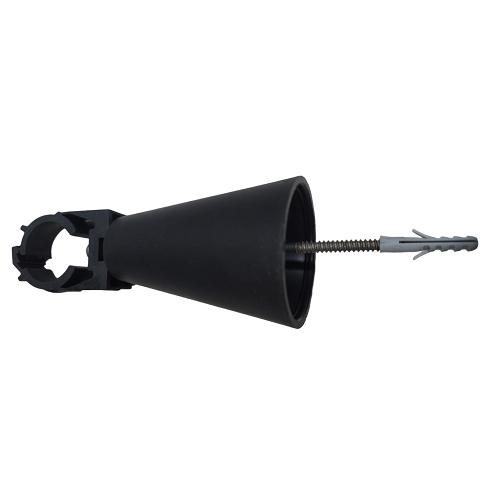

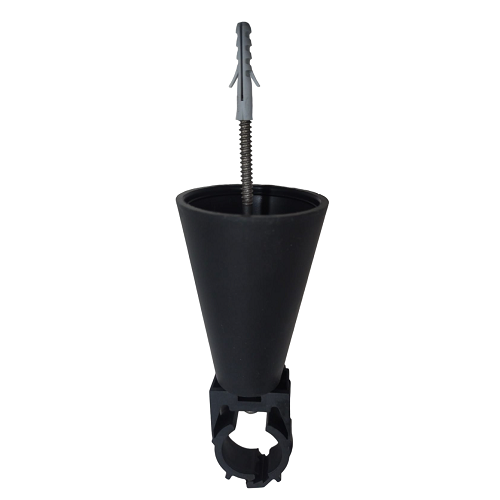

PP Clamp for 7_8 “Leaky Cable with M4 Screw

PP Clamp for 7_8 “Leaky Cable with M4 Screw

Description

Self-Locking Click Clamp for 7/8" Leaky Co-axial cable. Self-Locking Click Clamp for 7/8” Leaky
Cable. These hanger kits and accessories are designed to mount vertical and horizontal coaxial cable runs.


Features:


Allows for safe and efficient Leaky Co-Axial RF Cable installation using these self-locking Click
Clamps. Simple mounting by using anchoring arrangement provided and mounted onto a standoff to ensure
minimum adequate distance from the wall. Push the cable in by hand, and clamp.


ELECTRICAL & MECHANICAL SPECIFICATIONS

Product Line RF Cable Accessories
Model No.  SRFSL-RFCL-PP-22D
Product Type Installation Hardware
Clamp Type PP clamp for Leaky Cable
Cable Size  7/8"
Color Silver and Black
Material SS, PP FRLSZH, Nylon FR
Axial Load Capability 8 X 7/8” LCX Cable Weight per mtr
Corrosion Resistance 500 hours of the salt spray chamber
UV Resistance 100 hours of accelerated UV Life Chamber
Operating Temperature -30 °C to +75°C


TECHNICAL SPECIFICATIONS

Self-Locking Clamp-1 pcs Nylon FR
Screw M4 1 pcs SS316
S6 Gitti 1 pcs Nylon
Round Base - 1 pcs PP -FRLSZH
