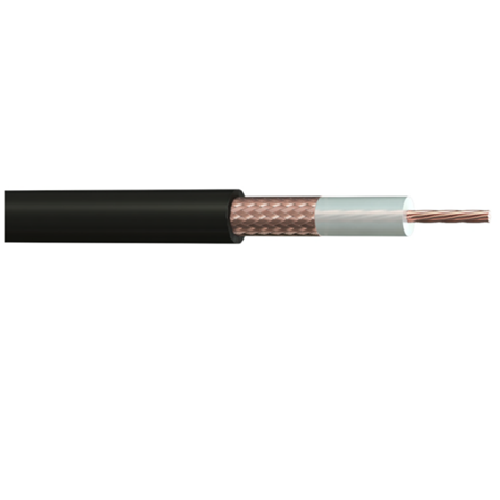

RG 11 Coaxial Cable

Construction

Conductor Material:

Stranded Bare Copper

Stranding:

7 x 0.4mm

Dielectric:

Low Density Polyethylene (LDPE)

Diameter of Dielectric:

7.25mm (+/- 0.18mm)

Screen Material:

Bare Copper Wire Braid

Coverage:

≥ 97%

Outer Sheath Material:

Low Smoke Halogen Free (LSHF)

Outer Sheath Color:

Black

MECHANICAL SPECIFICATIONS

Impedance:

75 Ω ± 5

Capacitance:

67 pF /m

Velocity of Propagation:

66 %

Conductor Resistance:

≤ 23.5 Ω /km

Screen Resistance:

≤ 4.5 Ω /km

Screen Effectiveness 100-900 MHz:

>55 dB

Structural Return Loss 30-300 MHz:

                                        300-600 MHz:

                                        600-900 MHz:

>30 dB

>27 dB

>25 dB

Impedance:

75 Ω ± 5

Capacitance:

67 pF /m

Velocity of Propagation :

66 %

Conductor Resistance :

≤ 23.5 Ω /km

Screen Resistance :

≤ 4.5 Ω /km
