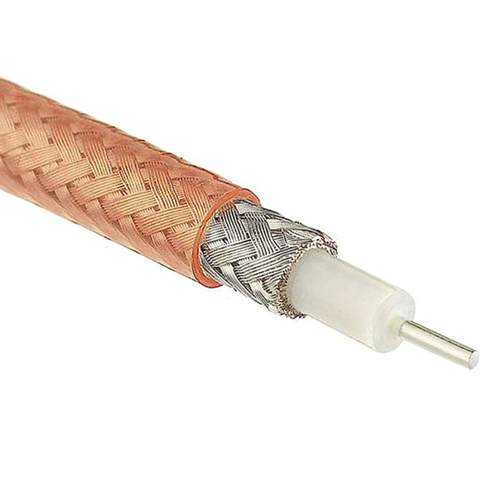

RG 142Cable
RG 142Cable
Couldn't load pickup availability
For more detail : Click Here
|
ELECTRICAL SPECIFICATIONS |
||
|
Frequency Range |
DC-12.4 GHz |
|
|
Velocity of Propagation, Nom. |
82% |
|
|
Impedance |
50 Ω |
|
|
Capacitance |
95.50 pF/ft (pF/m) |
|
|
Nominal Weight |
2 kg/100 m |
|
|
Bending Radius |
44.0 mm |
|
|
Temperature |
-55° to +200°C |
|
|
Construction |
||
|
Item |
Specification |
Diameter (mm) |
|
Dielectric |
Solid PTFE |
2.95 |
|
Center Conductor |
Silver Plated Copper Cover Steel Wire |
0.94 |
|
1 out Shield |
Silver Plated Copper Wire Braiding |
3.43 |
|
2 out Shield |
Silver Plated Copper Wire Braiding |
4.09 |
|
Jacket |
PE |
4.95 mm |
|
Color |
Rose Gold |
- |
