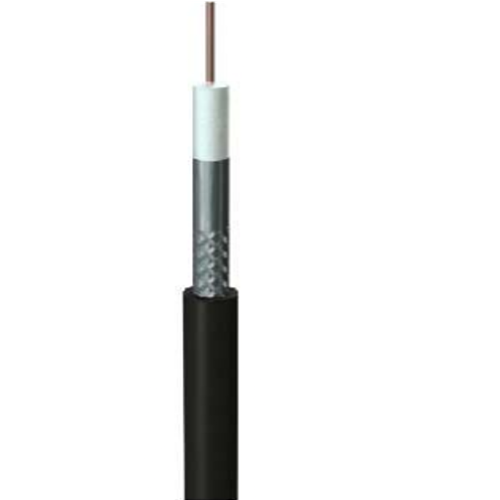

RG 6 CABLE DS

CONSTRUCTION

Item

Material

Diameter (mm)

Inner Conductor

Copper Clad Steel

0.74 mm

Dielectric

  PE

0.185 in (4.7 mm)

First Shield

Silver Plated Copper Braid

0.248 in (8.43 mm)

Second Shield

Copper Braid

0.248 in (8.43 mm)

Jacket

PVC

              0.332 in (8.43 0.332 )in (8.43 mm)mm)

ELECTRICAL SPECIFICATION

Impedance

75 Ω

Frequency Range

DC 1000 MHz

Velocity of Propagation

66 %

Shielding Effectiveness

90 dB

Operating Voltage (DC)

2700 Vdc

Weight

0.13 kg / m

Nominal Capacitance

20.6 pF/ft / 66.59 pF/m

Operating Temperature

-40 to +80 (°C)

ATTENUATION AT 20°C (dB/100m)

Frequency (MHz)

dB / 100 ft                                                            dB / 100 m

10

   0.8                                                                         2.62

100

   2.9                                                                         9.51

1000

   11                                                                        36.09
