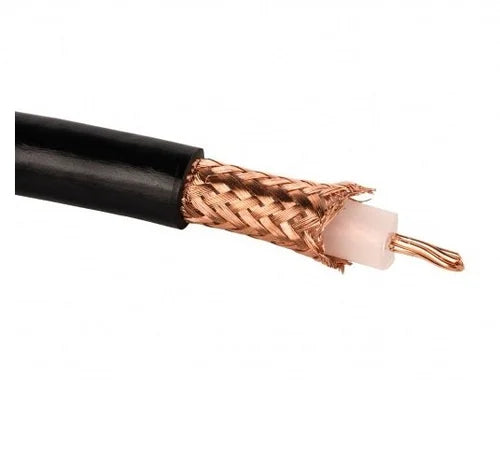

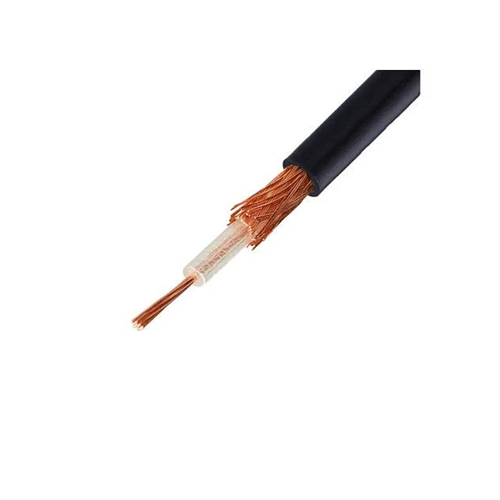

RG Cable RG174 Cable
RG Cable RG174 Cable
Couldn't load pickup availability
ELECTRICAL SPECIFICATIONS
Frequency Range | 3 GHz |
Velocity of Propagation, Nom. | 82% |
Impedance | 50 Ω |
Capacitance | 100.00 pF/m |
Nominal Weight | 4 kg/100 m |
Bending Radius | 44.0 mm |
Temperature | -20°C to +70°C |
Construction
Item | Specification | Diameter (mm) |
Dielectric | Solid PTFE | 1.52 |
Center Conductor | Silver Plated Copper Cover Steel Wire | 7/0.16 |
Shield | Tin Plated Copper Wire Braiding | 16/4/0.1(87%) |
Jacket | PVC (Black) | 2.79 |
