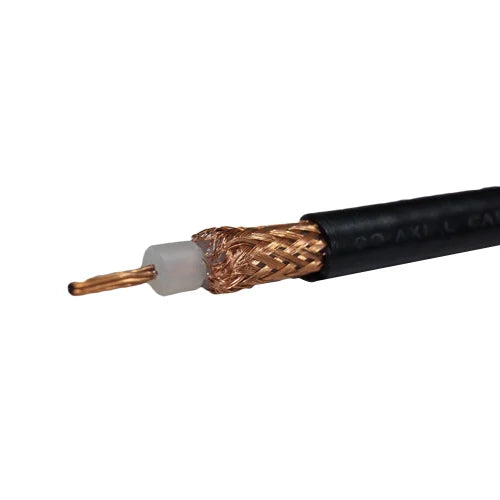

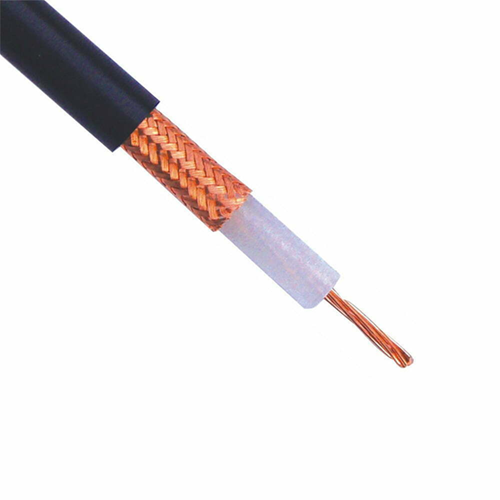

RG213 Cable

ELECTRICAL SPECIFICATIONS

Frequency Range

DC-3 GHz

Velocity of Propagation, Nom.

66 %

Impedance

50 Ω

Capacitance

101 pF/m

Inductance

0.253 µH/m

DC Resistance Inner Conductor

5.8 Ω/km

Outer Conductor 4.1 Ω/km Temperature

-55°C to +200°C

Construction

Item

Specification

Diameter (mm)

Dielectric

Solid Polyethylene

7.25 mm

Inner Conductor

Stranded Copper Wire

2.26 mm

Outer Conductor

Tinned Copper Braid

8.11 mm

Jacket Materials

PVC Black

10.31 mm

Freq.

50

100

400

600

1000

1200

1500

2000

3000

Atte.  (dB/ 100m)

4.3

6.5

14.6

18.5

25

28

32

39

49
