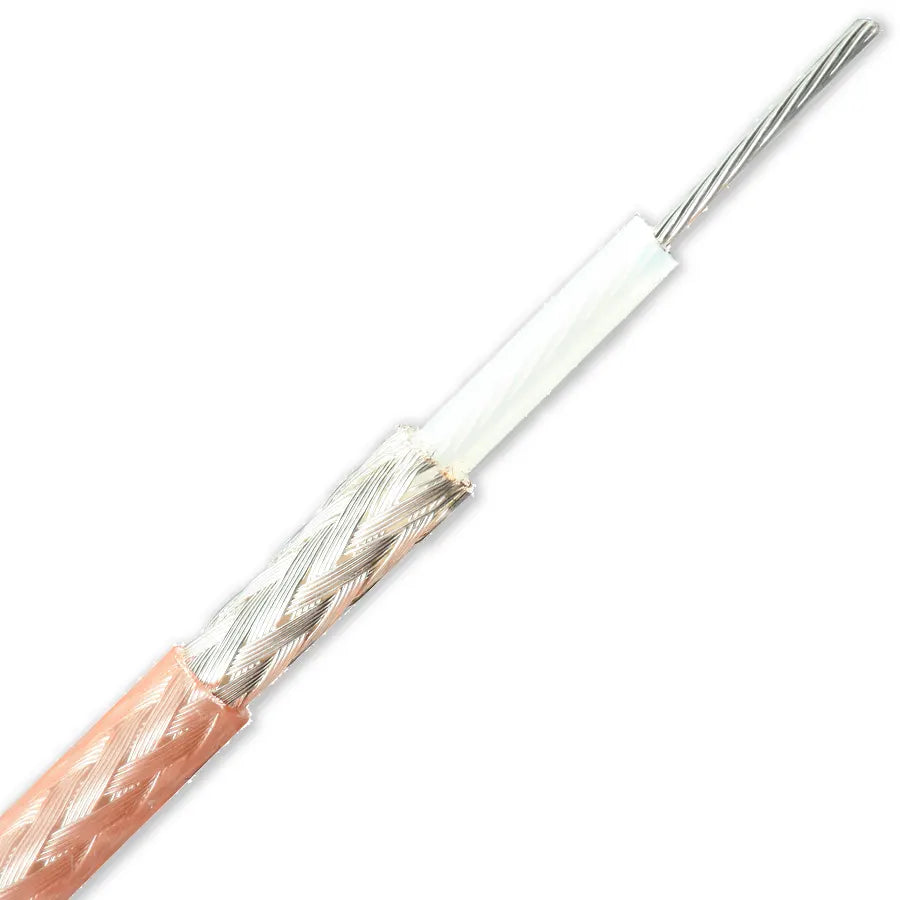

RG316 Cable

CONSTRUCTION

Item

Material

Diameter (mm)

Inner Conductor

Silver plated copper clad steel

7 / 0.17 ±0.02

Dielectric

PTFE

1.52 ±0.08

Shield

95% Silver plated copper braid

1.98 ±0.08

Jacket

FEP

2.49 ±0.1

ELECTRICAL SPECIFICATION

Maximum operating frequency (MHZ)

3,000

Impedance (Ω)

50 ±2

Capacitance (pF/m)

95

Velocity of Propagation (%)

69.5

Maximum operating voltage (Vrms)

1,200

Voltage withstand (Vrms)

2,000

Conductor DCR (Ohm / km)

277.2

Outer shield DCR (Ohm / km)

20

Spark test (Vrms)

2,000

Operating Temperature Range

-55 to 200



ATTENUATION AT 20°C (dB/100m)

Frequency (MHz)

Maximum (dB / 100 ft)

Maximum (dB / 100 m)

10

2.7

8.9

50

5.6

18.4

100

8.3

27.2

200

11

36.1

400

16.7

54.8

700

22.8

74.8

900

26.3

86.3

1000

228.6

93.8

3000

53.3

174.9
