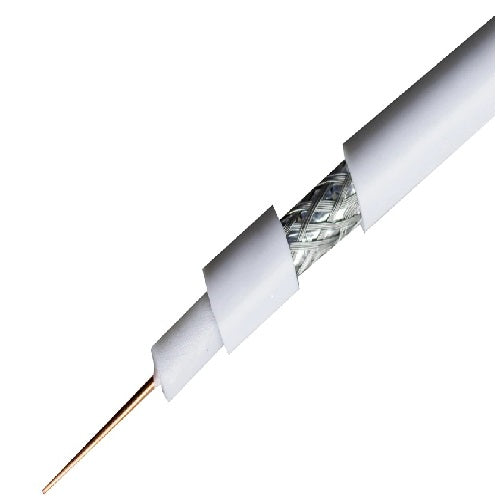

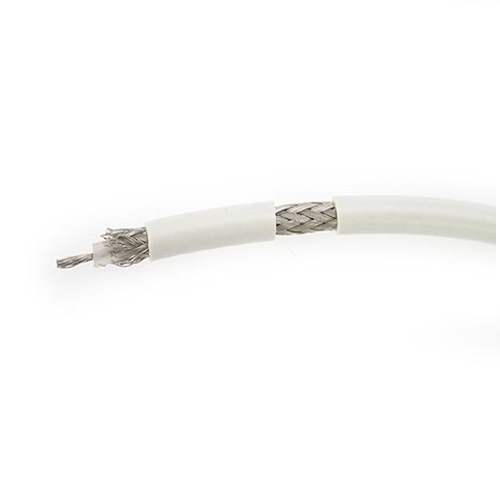

RG58 White Cable

CONSTRUCTION

Item

Material

Diameter (mm)

Conductor

Tinned Copper

0.9

Insulation

Solid PE

2.95

Braiding Layer

Tinned Copper

94%

Jacket

LSZH

4.95



ELECTRICAL SPECIFICATION

Operating Temperature Range

Operating Temperature Range

Impedance (Ω)

50 ± 3

Rated Voltage(V)

1,900V rms

Capacitance (pF/m)

100 ± 5

Velocity Ratio (%)

66

Max. Conductor DC Resistance at 20°C (Ω/km)

39.2

Min. Insulation DC Resistance at 20°C (MΩ × km)

>500

Operating Temperature Range

-30°C to +80°C





ATTENUATION AT 20°C (dB/100m)



Frequency (MHz)

100MHz

21

200MHz

31

1000MHz

76
