Self-Amalgamating Insulating Rubber Tape
Self-Amalgamating Insulating Rubber Tape
Product Description

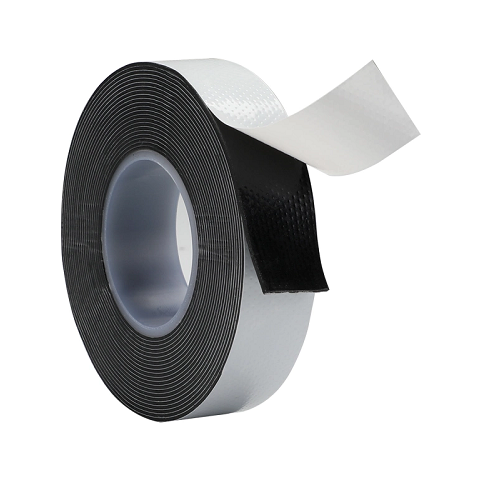

Self-Amalgamating Insulating Rubber Tape is a self-amalgamating ethylene propylene rubber
(EPR) tape, used on solid dielectric cable for electrical insulation and jacketing in splices up to
69KV and for building stress cones in terminations up to 35KV. The tape comes with a separator
that is removed during the taping process. Its 0.76mm thickness and quick amalgamation
facilitates a rapid, void free insulation build-up that is electrically stable and moisture proof. WT-
RT-23 is suitable for use with conductors rated at 90°C with an emergency overload rating of
130°C. The tape is also resistant to corrosion, chemical and ultraviolet light.
Get connected with us:
Self-Amalgamating Insulating Rubber Tape
Application
• Electrical insulation and jacketing in splices of solid dielectric cable up to
69KV.
• Building stress cones in terminations of solid dielectric cable up to 35KV.
• Jacketing of indoor terminations.
• Bus bar insulation and corrosion protection.
• Jacket repair and restoration in all types of cable.
Property |
Value Test |
Method / Reference |
Tensile strength | >2.8MPa | ASTM D 4325 |
Thickness | 0.76mm | ASTM D 4325 |
Elongation at break (%) | >880% | ASTM D 4325 |
Fusion | Pass | ASTM D 4388 |
Operating Temp - continuous | 90℃ | ASTM D 4388 |
Operating Temp - emergency overload | 130℃ | ASTM D 4388 |
Dielectric Strength (KV/mm) | 38.3 | ASTM D 4325 |
Dielectric constant (90℃*24h) | 2.8 | ASTM D 4325 |
Dielectric Constant |
After water immersion After hot water immersion |
3.00 3.11 |
ASTM D 4325 ASTM D 4325 |
Dissipation Factor |
After water immersion 24h@23℃ After hot water immersion 24h@70℃ |
0.0398 ASTM D 4325 0.0314 |
ASTM D 4325 ASTM D 4325 |
Volume resistivity |
96h@23℃, 50%RH 96h@23℃, 96%RH |
1 X 1016 Ω.CM 1 X 1016 Ω.CM |
ASTM D 4325 ASTM D 4325 |
