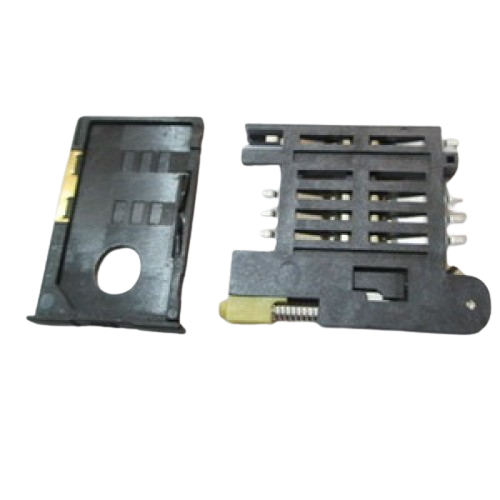

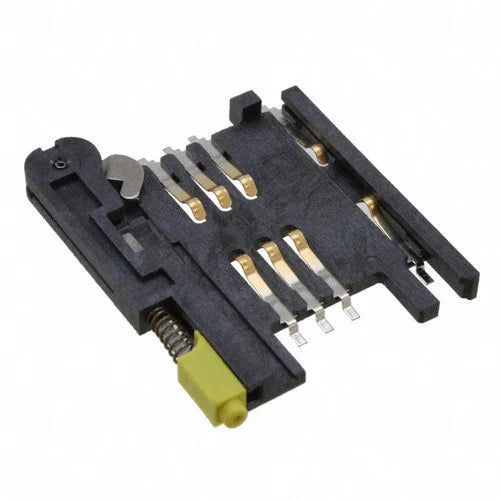

SIM CARD HOLDER PUSH TYPE
SIM CARD HOLDER PUSH TYPE
Couldn't load pickup availability
Electrical & Mechanical Specifications
| Current Rating | 3 Amps |
| Insulator body | L C P |
| Insulator Resistance | 500 MΩ Min |
| Dielectric Withstanding | DC 500V |
| Contact Resistance | 20MΩ Max |
| Durability | 100 gf Cycles Min |
| Contact Material | Copper Alloy |
| Contact Plating | Au or SN Over Ni |
| Max. Processing | 240°C for 30-60 seconds 260°C for 10 seconds |
