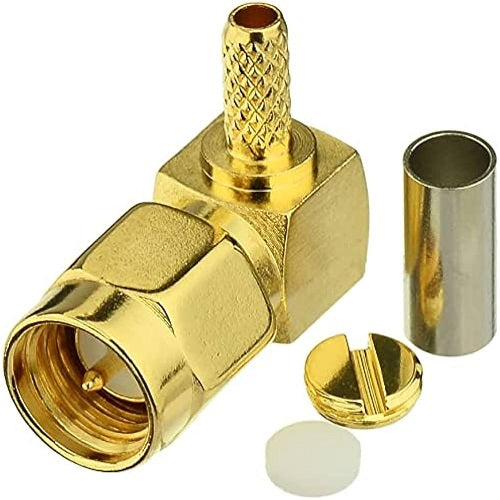

SMA(M) for RG 316 Crimp
SMA(M) for RG 316 Crimp
ELECTRICAL& MECHANICAL SPECIFICATIONS
Frequency Range | DC-6GHz |
VSWR (max) | ≤1.15@DC-6GHz |
Dielectric Withstanding Voltage | ≥1000Vrms, 50 Hz at sea level |
Working Voltage | 335V RMS,50Hz,at sea level |
Characteristic Impedance | 50 Ω |
Contact Resistance | Center Contact ≤3mΩ Outer Contact ≤2.5mΩ |
Dielectric Resistance | ≥5000MΩ |
Durability | Mating Cycles ≥500 |
Material & Plating
Material | Plating |
Body | Brass | Au |
Insulator | PTFE(Teflon) | - |
Center conductor | Phosphor Copper | Au |
Environmental
Temperature Range | -40°C~+85°C |
Humidity | 5~95 % |
RoHS | Compliant Yes |
