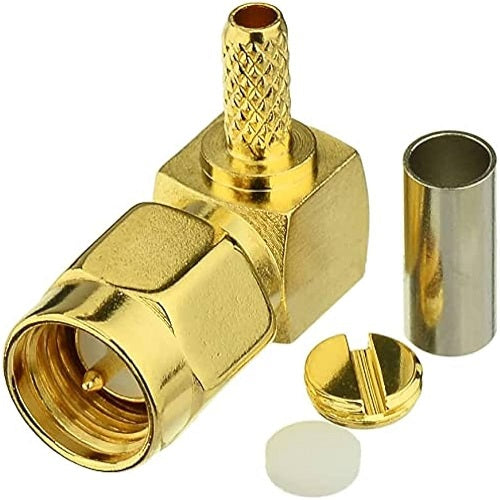

SMA(M) RA for RG 174 Crimp

ELECTRICAL & MECHANICAL SPECIFICATIONS

Frequency Range

DC-12.4GHz

VSWR (max)

≤1.15@DC-6GHz

Dielectric Withstanding Voltage

≥1000Vrms, 50 Hz at sea level

Working Voltage

335V RMS,50Hz,at sea level

Characteristic Impedance

50 Ω

Contact Resistance

Center Contact ≤3mΩ Outer Contact ≤2.5mΩ

Dielectric Resistance

≥5000MΩ

Durability

Mating Cycles ≥500

Material & Plating

Material

Plating

Body

Brass

Au

Insulator

PTFE(Teflon)

-

Center conductor

Phosphor Copper

Au



Environmental

Temperature Range

-40°C~+85°C

Humidity

5~95 %

RoHS	Compliant Yes
