SRFS Teleinfra

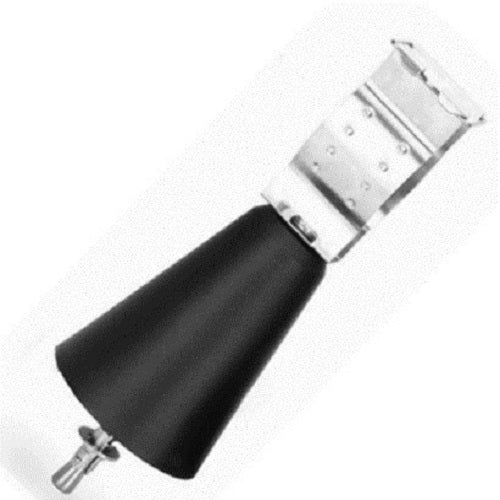

Stainless Steel Clamp for 7/8" Leaky Cable Wedge Anchor

Stainless Steel Clamp for 7/8" Leaky Cable Wedge Anchor

Description


Description: Stainless Steel Cable Clamps are used to provide Fire Resistant installations of
Radiating Cables in mountain area, hill, tunnel, underground railway, underground building with
or without spacer s. The installation is very simple and quick. To limit the interference that could
be caused by Metal Objects on the RF field generated by a Radiating Cable, only every 10th
fixing should be metallic.


Features/Benefits


Cable Clamps for Radiating Cables, SRFS radiating cable clamps offer a wide range of
solutions for a fast and secure installation of cables in railway, motorway, and underground
tunnels.

MECHANICAL SPECIFICATIONS


Product Line Product Line RF Cable Accessories
Product Type Installation Hardware
Clamp Type Stainless steel clamp for Leaky Cable
Cable Size 7/8
Color Silver and Black
Material SS, PP FRLSZH
Axial Load Capability 8 X7/8 LCX Cable Weight per mtr
Corrosion Resistance > 500 hours of the salt spray chamber
UV Resistance >100 hours of accelerated UV Life Chamber
Operating Temperature -40 °C to +85°C



MECHANICAL SPECIFICATIONS


Self-Locking Clamp-1 pcs Stainless Steel SS304 or SS316
M8 Screw Stainless Steel SS304 or SS316
M8 Screw Stainless Steel SS304 or SS316
Wedge Anchor Fastener Stainless Steel SS304 or SS316
M8 Nut Stainless Steel SS304 or SS316
M8 Washer Stainless Steel SS304 or SS316
M8 Spring Washer Stainless Steel SS304 or SS316
Round Base - 1 pcs PP -FRLSZH
