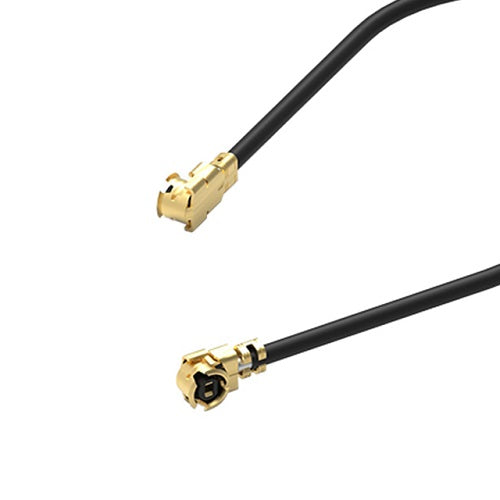

UFL to UFL with 1.13mm Cable Assembly ( L: 10 CM )
UFL to UFL with 1.13mm Cable Assembly ( L: 10 CM )
Electrical Specifications
Impedance | 50Ω |
Capacitance (nominal) | 3.43dB/m (at 3GHz); 5.13dB/m (at 6GHz) |
Insulation resistance | 500MΩ (Min.) |
Dielectric Withstanding Voltage | 60V AC (rms) |
Mechanical Specifications
Cable diameter (Max.) | 1.37mm (options of 1.32mm double screened cable) |
Cable bend radius (Min.) | 16mm (for 1.37mm) |
Temperature range | -40°C to +90°C |
Mating torque (Max.) | 0.245 N-m |
Cable lengths (standard) | 100mm |
