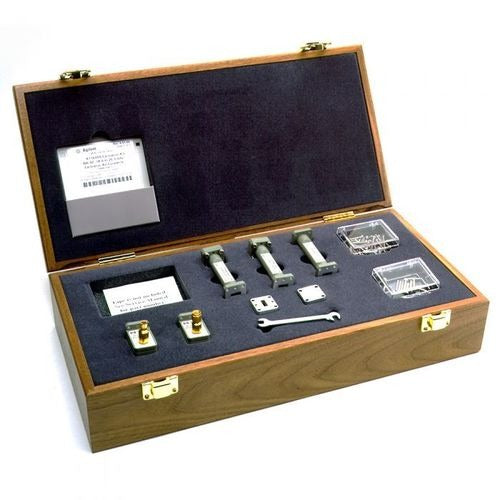

Waveguide Calibration Kits Part No: SRFS100VNAWKN

Name: Waveguide Calibration Kits Part No: SRFS100VNAWKN
Brand: SRFS Teleinfra
Availability: InStock

Electrical & Mechanical Specifications

Model

SRFS.RFLA-622-050401

Frequency (GHz)

DC ~ 6

VSWR	1G ≤1.1 / 2.4G ≤ 1.15 / 5.8G ≤ 1.3

Impedance

50 Ohm

Application

Outdoor

Insert loss

≤0.4dB(6.0G)

Residual voltage(1kV/μs)

<600V

Nominal discharge voltage

230V±20%

Surge current capability

30kA once and 20kA multiple

Connector type

N-Plug/Male to N-Socket/Female

Size (mm)

78*30mm

Operating Temperature(°C)

-30~+65
