Waveguide High-Power Water-Cooled Termination
Waveguide High-Power Water-Cooled Termination

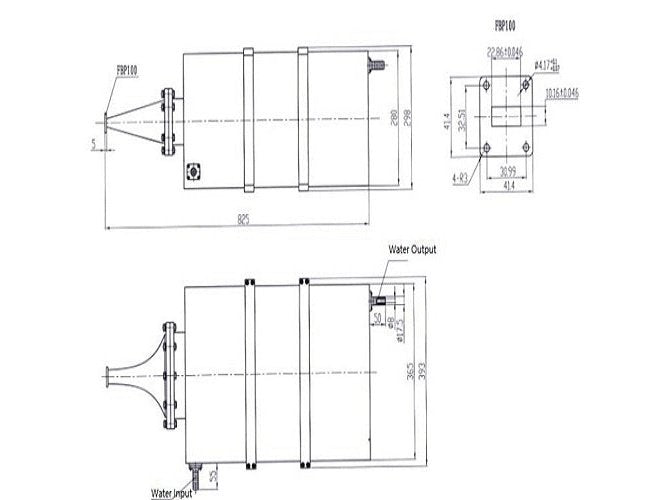

Electrical & Mechanical Specifications
Frequency Range | 9.8-10.2 GHz |
VSWR (Max) | 1.20 |
Power Handing (Max) | 8000 W (CW) |
Waveguide type | WR90 |
Flange type | FBP100 (Cover) |
Basis-material | Aluminum |
Inside finish | Chromate conversion |
Outside finish | Anticorrosion grey paint |
