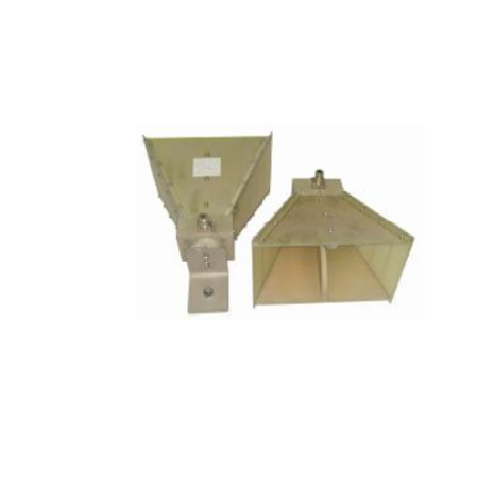

Wideband Dual-ridged Horn Antenna(1-18GHz)

Electrical & Mechanical Specification

Frequency Range

1-18 GHz

VSWR (Max)

<1.6

Gain (Avg)

10dB

Beamwidth (Avg)

E-Plane:     90° to 10°
H-Plane:  60° to 10°

Polarization

Linear

Dimensions

284×244.5×160 mm

Input Impedance

50 Ohm

Connector type

N Female

Material

Aluminum

Weight

1.8 kg
