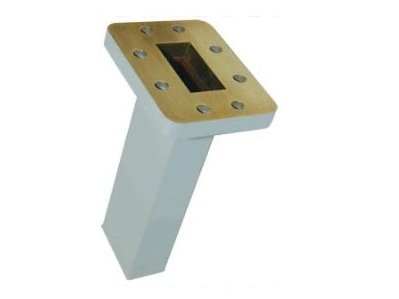

WR112 Waveguide Termination
WR112 Waveguide Termination
Features:
Full Waveguide Band Coverage
Max VSWR of 1.03
5 Watts CW & 20 Kilo-Watts Peak
Applications:
Communication & Radar Systems
Microwave Radio Systems
R&D Labs
Electrical & Mechanical Specification
Frequency range | 6.57-9.99 GHz |
VSWR (Max) | 1.03 |
Average Power |
5 W |
Peak Power | 20 kW |
Waveguide Type | WR112 |
Flange Type | UBR |
Material | Copper/Brass |
Inside Finish | Silver plating |
Outside Finish |
Anticorrosion grey paint |
Length | L=150 mm |
Weight | 0.3 kg |
Operating Temperature | -30° ~+70°C |
Storage Temperature | -40° ~+85°C |
