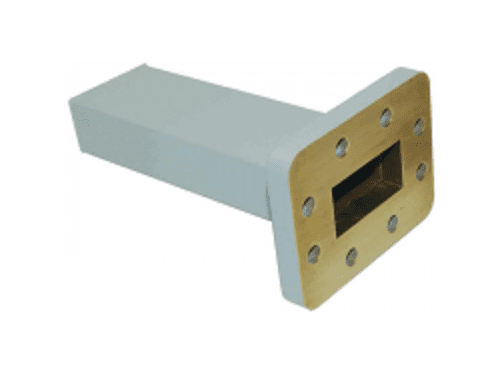

WR137 Waveguide Termination

Features:

Full Waveguide Band Coverage
Max VSWR of 1.03
5 Watts CW & 20 Kilo-Watts Peak

Applications:

Communication & Radar Systems
Microwave Radio Systems
R&D Labs



Electrical & Mechanical Specification

Frequency range

5.38- 8.17 GHz

VSWR (Max)

1.03

Average Power

5 W

Peak Power

50kW

Waveguide Type

WR137

Flange Type

UBR

Material

Copper/Brass

Inside Finish

Silver plating

Outside Finish

Anticorrosion grey paint

Length

L =180 mm

Weight

0.48 kg

Operating Temperature

-30° ~+70°C

Storage Temperature

-40° ~+85°C
