SRFS Teleinfra

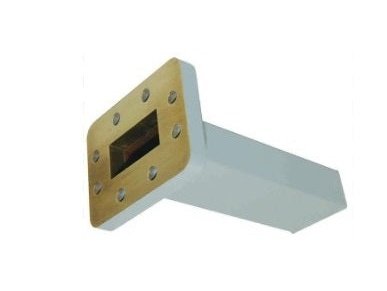

WR28 Waveguide Termination

WR28 Waveguide Termination

Features:


• Full Waveguide Band Coverage
• Max VSWR of 1.03
• 1 Watts CW & 1 Kilo-Watts Peak


Applications:


• Communication & Radar Systems
• Microwave Radio Systems
• R&D Labs

Electrical & Mechanical Specifications


Frequency range 26.5 - 40.0 GHz
VSWR (Max) 1.03
Average Power
1 W
Peak Power 1 kW
Waveguide Type WR28
Flange Type UBR
Material Copper/Brass
Inside Finish Silver plating
Outside Finish
Anticorrosion grey paint
Length L=50 mm
Weight 0.02 kg
Operating Temperature -30° ~+70°C

Storage Temperature -40° ~+85°C
